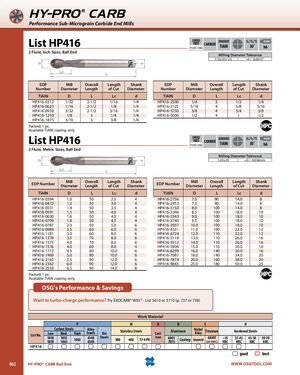

Общий каталог OSG 2018 - 2019 - страница 862

HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP416 SPEEDFEED CARBIDEP1095-1096TiAIN SHANK30˚h6 2 Flute, Inch Sizes, Ball End Milling Diameter Tolerance 1/32≤D≤1/2 +0 / -0.0015" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter TiAlN D L Lc d TiAlN D L Lc d HP416-0312 1/32 2-1/2 1/16 1/4 HP416-2500 1/4 3 1/2 1/4 HP416-0625 1/16 2-1/2 1/8 1/4 HP416-3125 5/16 4 5/8 5/16 HP416-0938 3/32 2-1/2 3/16 1/4 HP416-3750 3/8 4 3/4 3/8 HP416-1250 1/8 3 1/4 1/4 HP416-5000 1/2 4 1 1/2 HP416-1875 3/16 3 3/8 1/4 Packed: 1 pc. Available TiAlN coating only. List HP416 SPEEDFEED CARBIDEP1095-1096TiAIN SHANK30˚h6 2 Flute, Metric Sizes, Ball End Milling Diameter Tolerance 1≤D≤25 +0 / -0.038mm EDP Number MillDiameter OverallLength Length Shankof CutDiameterEDP Number MillDiameter OverallLength Length Shankof CutDiameter TiAlN D L Lc d TiAlN D L Lc d HP416-0394 1.0 50 2.5 4 HP416-2756 7.0 90 14.0 8 HP416-0472 1.2 50 3.0 4 HP416-2953 7.5 90 14.0 8 HP416-0551 1.4 50 3.5 4 HP416-3150 8.0 100 14.0 8 HP416-0591 1.5 50 4.0 4 HP416-3346 8.5 100 18.0 10 HP416-0630 1.6 50 4.0 4 HP416-3543 9.0 100 18.0 10 HP416-0709 1.8 50 4.5 4 HP416-3740 9.5 100 18.0 10 HP416-0787 2.0 50 5.0 6 HP416-3937 10.0 100 18.0 10 HP416-0984 2.5 60 6.0 6 HP416-4331 11.0 100 22.0 12 HP416-1181 3.0 60 8.0 6 HP416-4724 12.0 110 22.0 12 HP416-1378 3.5 70 8.0 6 HP416-5118 13.0 110 26.0 16 HP416-1575 4.0 70 8.0 6 HP416-5512 14.0 110 26.0 16 HP416-1576 4.0 60 8.0 4 HP416-5906 15.0 110 30.0 16 HP416-1772 4.5 80 10.0 6 HP416-6299 16.0 140 30.0 16 HP416-1969 5.0 80 10.0 6 HP416-7087 18.0 140 34.0 20 HP416-2165 5.5 90 12.0 6 HP416-7874 20.0 160 38.0 20 HP416-2362 6.0 90 12.0 6 HP416-9843 25.0 180 50.0 25 HP416-2559 6.5 90 14.0 8 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOCARB® WXL® - List 3610 or 3710 (p. 737 or 738) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP416 good best 862 HY-PRO® CARB Ball End WWW.OSGTOOL.COM
