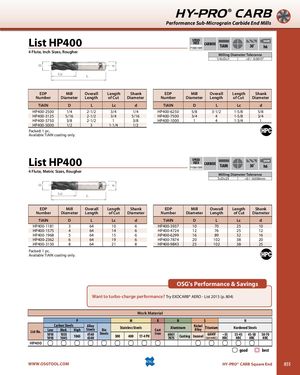

Общий каталог OSG 2018 - 2019 - страница 855

HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP400 SPEEDFEED CARBIDEP1088-1089TiAIN SHANK30˚h6 4 Flute, Inch Sizes, Rougher Milling Diameter Tolerance 1/4≤D≤1 +0 / -0.0015" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter TiAlN D L Lc d TiAlN D L Lc d HP400-2500 1/4 2-1/2 3/4 1/4 HP400-6250 5/8 3-1/2 1-5/8 5/8 HP400-3125 5/16 2-1/2 3/4 5/16 HP400-7500 3/4 4 1-5/8 3/4 HP400-3750 3/8 2-1/2 1 3/8 HP400-1000 1 4 1-3/4 1 HP400-5000 1/2 3 1-1/4 1/2 Packed: 1 pc. Available TiAlN coating only. List HP400 SPEEDFEED CARBIDEP1088-1089TiAIN SHANK30˚h6 4 Flute, Metric Sizes, Rougher Milling Diameter Tolerance 3≤D≤25 +0 / -0.038mm EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter TiAlN D L Lc d TiAlN D L Lc d HP400-1181 3 64 10 6 HP400-3937 10 70 25 10 HP400-1575 4 64 14 6 HP400-4724 12 76 25 12 HP400-1968 5 64 15 6 HP400-6299 16 89 32 16 HP400-2362 6 64 19 6 HP400-7874 20 102 38 20 HP400-3150 8 64 21 8 HP400-9843 25 102 38 25 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOCARB® AERO - List 2015 (p. 804) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP400 good best WWW.OSGTOOL.COM HY-PRO® CARB Square End 855
