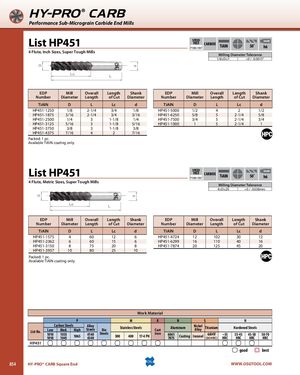

Общий каталог OSG 2018 - 2019 - страница 854

HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP451 SPEEDFEED CARBIDEP1086-1087TiAIN SHANK50˚h6 4 Flute, Inch Sizes, Super Tough Mills Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.0015" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter TiAlN D L Lc d TiAlN D L Lc d HP451-1250 1/8 2-1/4 3/4 1/8 HP451-5000 1/2 4 2 1/2 HP451-1875 3/16 2-1/4 3/4 3/16 HP451-6250 5/8 5 2-1/4 5/8 HP451-2500 1/4 3 1-1/8 1/4 HP451-7500 3/4 5 2-1/4 3/4 HP451-3125 5/16 3 1-1/8 5/16 HP451-1000 1 5 2-1/4 1 HP451-3750 3/8 3 1-1/8 3/8 HP451-4375 7/16 4 2 7/16 Packed: 1 pc. Available TiAlN coating only. List HP451 SPEEDFEED CARBIDEP1086-1087TiAIN SHANK50˚h6 4 Flute, Metric Sizes, Super Tough Mills Milling Diameter Tolerance 4≤D≤20 +0 / -0.038mm EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter TiAlN D L Lc d TiAlN D L Lc d HP451-1575 4 60 12 6 HP451-4724 12 102 30 12 HP451-2362 6 60 15 6 HP451-6299 16 110 40 16 HP451-3150 8 75 20 8 HP451-7874 20 125 45 20 HP451-3937 10 80 25 10 Packed: 1 pc. Available TiAlN coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP451 good best 854 HY-PRO® CARB Square End WWW.OSGTOOL.COM
