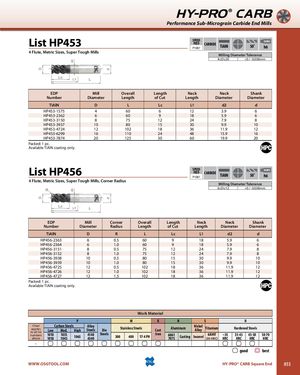

HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP453 SPEEDFEEDP1087CARBIDETiAIN SHANK50˚h6 4 Flute, Metric Sizes, Super Tough Mills Milling Diameter Tolerance 4≤D≤20 +0 / -0.038mm EDP Mill Overall Length Neck Neck Shank Number Diameter Length of Cut Length Diameter Diameter TiAlN D L Lc L1 d2 d HP453-1575 4 60 6 12 3.9 6 HP453-2362 6 60 9 18 5.9 6 HP453-3150 8 75 12 24 7.9 8 HP453-3937 10 80 15 30 9.9 10 HP453-4724 12 102 18 36 11.9 12 HP453-6299 16 110 24 48 15.9 16 HP453-7874 20 125 30 60 19.9 20 Packed: 1 pc. Available TiAlN coating only. List HP456 SPEEDFEEDP1087CARBIDETiAIN SHANK50˚h6 4 Flute, Metric Sizes, Super Tough Mills, Corner Radius Milling Diameter Tolerance 6≤D≤12 +0 / -0.038mm EDP Mill Corner Overall Length Neck Neck Shank Number Diameter Radius Length of Cut Length Diameter Diameter TiAlN D R L Lc L1 d2 d HP456-2363 6 0.5 60 9 18 5.9 6 HP456-2364 6 1.0 60 9 18 5.9 6 HP456-3151 8 0.5 75 12 24 7.9 8 HP456-3152 8 1.0 75 12 24 7.9 8 HP456-3938 10 0.5 80 15 30 9.9 10 HP456-3939 10 1.0 80 15 30 9.9 10 HP456-4725 12 0.5 102 18 36 11.9 12 HP456-4726 12 1.0 102 18 36 11.9 12 HP456-4727 12 1.5 102 18 36 11.9 12 Packed: 1 pc. Available TiAlN coating only. Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045High1065SteelsDie4140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best WWW.OSGTOOL.COM HY-PRO® CARB Square End 853
