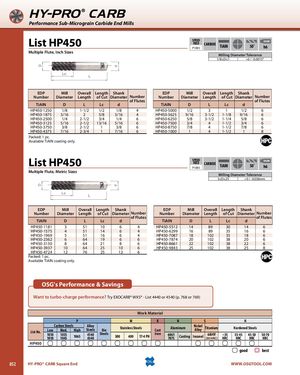

Общий каталог OSG 2018 - 2019 - страница 852

HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP450 SPEEDFEEDP1085CARBIDE TiAIN SHANK50˚h6 Multiple Flute, Inch Sizes Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.0015" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Number Diameter Length of Cut Diameter Number of Flutes of Flutes TiAlN D L Lc d TiAlN D L Lc d HP450-1250 1/8 1-1/2 1/2 1/8 4 HP450-5000 1/2 3 1 1/2 6 HP450-1875 3/16 2 5/8 3/16 4 HP450-5625 9/16 3-1/2 1-1/8 9/16 6 HP450-2500 1/4 2-1/2 3/4 1/4 6 HP450-6250 5/8 3-1/2 1-1/4 5/8 6 HP450-3125 5/16 2-1/2 13/16 5/16 6 HP450-7500 3/4 4 1-1/2 3/4 6 HP450-3750 3/8 2-1/2 1 3/8 6 HP450-8750 7/8 4 1-1/2 7/8 6 HP450-4375 7/16 2-3/4 1 7/16 6 HP450-1000 1 4 1-1/2 1 8 Packed: 1 pc. Available TiAlN coating only. List HP450 SPEEDFEEDP1085CARBIDE TiAIN SHANK50˚h6 Multiple Flute, Metric Sizes Milling Diameter Tolerance 3≤D≤25 +0 / -0.038mm EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Number Diameter Length of Cut Diameter Number of Flutes of Flutes TiAlN D L Lc d TiAlN D L Lc d HP450-1181 3 51 10 6 4 HP450-5512 14 89 30 14 6 HP450-1575 4 51 14 6 4 HP450-6299 16 89 35 16 6 HP450-1969 5 51 16 6 4 HP450-7087 18 102 35 18 6 HP450-2362 6 64 19 6 6 HP450-7874 20 102 38 20 6 HP450-3150 8 64 21 8 6 HP450-8661 22 102 38 22 6 HP450-3937 10 64 25 10 6 HP450-9843 25 102 38 25 8 HP450-4724 12 76 25 12 6 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOCARB® WXS® - List 4440 or 4540 (p. 768 or 769) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP450 good best 852 HY-PRO® CARB Square End WWW.OSGTOOL.COM
