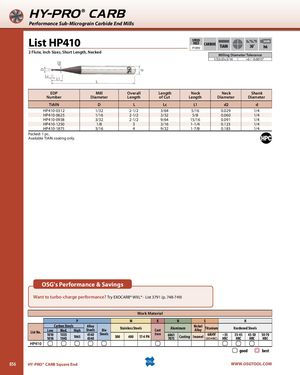

D d2 d HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP410 SPEEDFEEDP1090CARBIDE TiAIN SHANK30˚h6 2 Flute, Inch Sizes, Short Length, Necked Milling Diameter Tolerance 1/32≤D≤3/16 +0 / -0.0015" Lc L1 L EDP Mill Overall Length Neck Neck Shank Number Diameter Length of Cut Length Diameter Diameter TiAlN D L Lc L1 d2 d HP410-0312 1/32 2-1/2 3/64 5/16 0.029 1/4 HP410-0625 1/16 2-1/2 3/32 5/8 0.060 1/4 HP410-0938 3/32 2-1/2 9/64 15/16 0.091 1/4 HP410-1250 1/8 3 3/16 1-1/4 0.123 1/4 HP410-1875 3/16 4 9/32 1-7/8 0.183 1/4 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOCARB® WXL® - List 3791 (p. 748-749) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP410 good best 856 HY-PRO® CARB Square End WWW.OSGTOOL.COM
