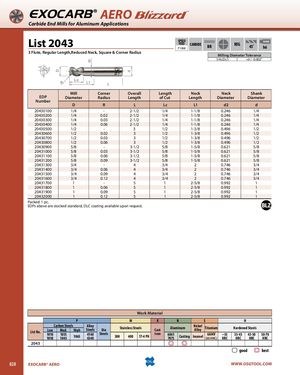

Общий каталог OSG 2018 - 2019 - страница 828

EXOCARB® AERO Blizzard ® Carbide End Mills for Aluminum Applications List 2043 SPEEDFEED CARBIDEP1068BR SHANKREG45˚h6 3 Flute, Regular Length,Reduced Neck, Square & Corner Radius Milling Diameter Tolerance 1/4≤D≤1 +0 / -0.002" Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter Number D R L Lc L1 d2 d 20430100 1/4 - 2-1/2 1/4 1-1/8 0.246 1/4 20430200 1/4 0.02 2-1/2 1/4 1-1/8 0.246 1/4 20430300 1/4 0.03 2-1/2 1/4 1-1/8 0.246 1/4 20430400 1/4 0.06 2-1/2 1/4 1-1/8 0.246 1/4 20430500 1/2 - 3 1/2 1-3/8 0.496 1/2 20430600 1/2 0.02 3 1/2 1-3/8 0.496 1/2 20430700 1/2 0.03 3 1/2 1-3/8 0.496 1/2 20430800 1/2 0.06 3 1/2 1-3/8 0.496 1/2 20430900 5/8 - 3-1/2 5/8 1-5/8 0.621 5/8 20431000 5/8 0.03 3-1/2 5/8 1-5/8 0.621 5/8 20431100 5/8 0.06 3-1/2 5/8 1-5/8 0.621 5/8 20431200 5/8 0.09 3-1/2 5/8 1-5/8 0.621 5/8 20431300 3/4 - 4 3/4 2 0.746 3/4 20431400 3/4 0.06 4 3/4 2 0.746 3/4 20431500 3/4 0.09 4 3/4 2 0.746 3/4 20431600 3/4 0.12 4 3/4 2 0.746 3/4 20431700 1 - 5 1 2-5/8 0.992 1 20431800 1 0.06 5 1 2-5/8 0.992 1 20431900 1 0.09 5 1 2-5/8 0.992 1 20432000 1 0.12 5 1 2-5/8 0.992 1 Packed: 1 pc. EDPs above are stocked standard, DLC coating available upon request. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2043 good best 828 EXOCARB® AERO WWW.OSGTOOL.COM
