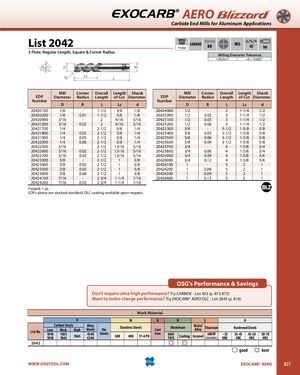

Общий каталог OSG 2018 - 2019 - страница 827

D d EXOCARB® AERO Blizzard ® Carbide End Mills for Aluminum Applications List 2042 SPEEDFEED CARBIDEP1068BR SHANKREG45˚h6 3 Flute, Regular Length, Square & Corner Radius Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" R Lc L Mill Corner Overall Length Shank Mill Corner Overall Length Shank EDP Diameter Radius Length of Cut Diameter EDP Diameter Radius Length of Cut Diameter Number Number D R L Lc d D R L Lc d 20420100 1/8 - 1-1/2 3/8 1/8 20424900 1/2 - 3 1-1/4 1/2 20420200 1/8 0.01 1-1/2 3/8 1/8 20425000 1/2 0.02 3 1-1/4 1/2 20420900 3/16 - 2 9/16 3/16 20425100 1/2 0.03 3 1-1/4 1/2 20421000 3/16 0.02 2 9/16 3/16 20425200 1/2 0.06 3 1-1/4 1/2 20421700 1/4 - 2-1/2 5/8 1/4 20425300 5/8 - 3-1/2 1-5/8 5/8 20421800 1/4 0.02 2-1/2 5/8 1/4 20425400 5/8 0.03 3-1/2 1-5/8 5/8 20421900 1/4 0.03 2-1/2 5/8 1/4 20425500 5/8 0.06 3-1/2 1-5/8 5/8 20422000 1/4 0.06 2-1/2 5/8 1/4 20425600 5/8 0.09 3-1/2 1-5/8 5/8 20422500 5/16 - 2-1/2 13/16 5/16 20425700 3/4 - 4 1-5/8 3/4 20422600 5/16 0.02 2-1/2 13/16 5/16 20425800 3/4 0.06 4 1-5/8 3/4 20422700 5/16 0.03 2-1/2 13/16 5/16 20425900 3/4 0.09 4 1-5/8 3/4 20423300 3/8 - 2-1/2 1 3/8 20426000 3/4 0.12 4 1-5/8 3/4 20423400 3/8 0.02 2-1/2 1 3/8 20426100 1 - 5 2 1 20423500 3/8 0.03 2-1/2 1 3/8 20426200 1 0.06 5 2 1 20423600 3/8 0.06 2-1/2 1 3/8 20426300 1 0.09 5 2 1 20424100 7/16 - 2-3/4 1-1/4 7/16 20426400 1 0.12 5 2 1 20424200 7/16 0.02 2-3/4 1-1/4 7/16 Packed: 1 pc. EDPs above are stocked standard, DLC coating available upon request. OSG's Performance & Savings Don't require ultra-high performance? Try CARBIDE - List 403 (p. 873-875) Want to turbo-charge performance? Try EXOCARB® AERO DLC - List 2843 (p. 818) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie106541404340SteelsStainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2042 good best WWW.OSGTOOL.COM EXOCARB® AERO 827
