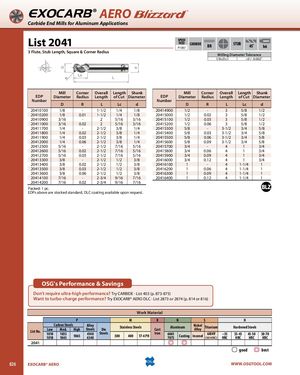

EXOCARB® AERO Blizzard ® Carbide End Mills for Aluminum Applications List 2041 SPEEDFEED CARBIDEP1067BR SHANKSTUB45˚h6 3 Flute, Stub Length, Square & Corner Radius Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" Mill Corner Overall Length Shank Mill Corner Overall Length Shank EDP Diameter Radius Length of Cut Diameter EDP Diameter Radius Length of Cut Diameter Number Number D R L Lc d D R L Lc d 20410100 1/8 - 1-1/2 1/4 1/8 20414900 1/2 - 3 5/8 1/2 20410200 1/8 0.01 1-1/2 1/4 1/8 20415000 1/2 0.02 3 5/8 1/2 20410900 3/16 - 2 5/16 3/16 20415100 1/2 0.03 3 5/8 1/2 20411000 3/16 0.02 2 5/16 3/16 20415200 1/2 0.06 3 5/8 1/2 20411700 1/4 - 2-1/2 3/8 1/4 20415300 5/8 - 3-1/2 3/4 5/8 20411800 1/4 0.02 2-1/2 3/8 1/4 20415400 5/8 0.03 3-1/2 3/4 5/8 20411900 1/4 0.03 2-1/2 3/8 1/4 20415500 5/8 0.06 3-1/2 3/4 5/8 20412000 1/4 0.06 2-1/2 3/8 1/4 20415600 5/8 0.09 3-1/2 3/4 5/8 20412500 5/16 - 2-1/2 7/16 5/16 20415700 3/4 - 4 1 3/4 20412600 5/16 0.02 2-1/2 7/16 5/16 20415800 3/4 0.06 4 1 3/4 20412700 5/16 0.03 2-1/2 7/16 5/16 20415900 3/4 0.09 4 1 3/4 20413300 3/8 - 2-1/2 1/2 3/8 20416000 3/4 0.12 4 1 3/4 20413400 3/8 0.02 2-1/2 1/2 3/8 20416100 1 - 4 1-1/4 1 20413500 3/8 0.03 2-1/2 1/2 3/8 20416200 1 0.06 4 1-1/4 1 20413600 3/8 0.06 2-1/2 1/2 3/8 20416300 1 0.09 4 1-1/4 1 20414100 7/16 - 2-3/4 9/16 7/16 20416400 1 0.12 4 1-1/4 1 20414200 7/16 0.02 2-3/4 9/16 7/16 Packed: 1 pc. EDPs above are stocked standard, DLC coating available upon request. OSG's Performance & Savings Don't require ultra-high performance? Try CARBIDE - List 403 (p. 873-875) Want to turbo-charge performance? Try EXOCARB® AERO DLC - List 2873 or 2874 (p. 814 or 816) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2041 good best 826 EXOCARB® AERO WWW.OSGTOOL.COM
