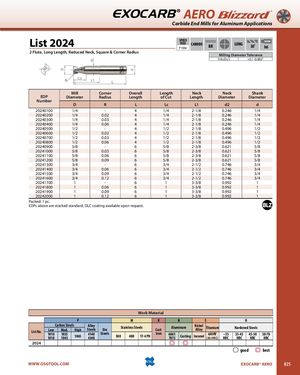

Общий каталог OSG 2018 - 2019 - страница 825

EXOCARB® AERO Blizzard ® Carbide End Mills for Aluminum Applications List 2024 SPEEDFEED CARBIDEP1066BR SHANKLONG30˚h6 2 Flute, Long Length, Reduced Neck, Square & Corner Radius Milling Diameter Tolerance 1/4≤D≤1 +0 / -0.002" Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter Number D R L Lc L1 d2 d 20240100 1/4 - 4 1/4 2-1/8 0.246 1/4 20240200 1/4 0.02 4 1/4 2-1/8 0.246 1/4 20240300 1/4 0.03 4 1/4 2-1/8 0.246 1/4 20240400 1/4 0.06 4 1/4 2-1/8 0.246 1/4 20240500 1/2 - 4 1/2 2-1/8 0.496 1/2 20240600 1/2 0.02 4 1/2 2-1/8 0.496 1/2 20240700 1/2 0.03 4 1/2 2-1/8 0.496 1/2 20240800 1/2 0.06 4 1/2 2-1/8 0.496 1/2 20240900 5/8 - 6 5/8 2-3/8 0.621 5/8 20241000 5/8 0.03 6 5/8 2-3/8 0.621 5/8 20241100 5/8 0.06 6 5/8 2-3/8 0.621 5/8 20241200 5/8 0.09 6 5/8 2-3/8 0.621 5/8 20241300 3/4 - 6 3/4 2-1/2 0.746 3/4 20241400 3/4 0.06 6 3/4 2-1/2 0.746 3/4 20241500 3/4 0.09 6 3/4 2-1/2 0.746 3/4 20241600 3/4 0.12 6 3/4 2-1/2 0.746 3/4 20241700 1 - 6 1 3-3/8 0.992 1 20241800 1 0.06 6 1 3-3/8 0.992 1 20241900 1 0.09 6 1 3-3/8 0.992 1 20242000 1 0.12 6 1 3-3/8 0.992 1 Packed: 1 pc. EDPs above are stocked standard, DLC coating available upon request. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2024 good best WWW.OSGTOOL.COM EXOCARB® AERO 825
