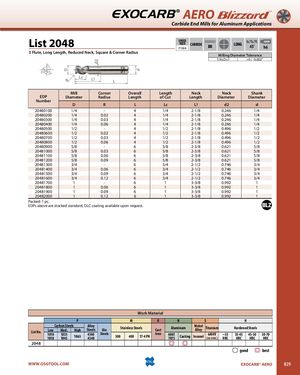

Общий каталог OSG 2018 - 2019 - страница 829

D d2 d EXOCARB® AERO Blizzard ® Carbide End Mills for Aluminum Applications List 2048 SPEEDFEEDCARBIDEP1068BR SHANKLONG45˚h6 3 Flute, Long Length, Reduced Neck, Square & Corner Radius Milling Diameter Tolerance 1/4≤D≤1 +0 / -0.002" R Lc L1 L Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter Number D R L Lc L1 d2 d 20480100 1/4 - 4 1/4 2-1/8 0.246 1/4 20480200 1/4 0.02 4 1/4 2-1/8 0.246 1/4 20480300 1/4 0.03 4 1/4 2-1/8 0.246 1/4 20480400 1/4 0.06 4 1/4 2-1/8 0.246 1/4 20480500 1/2 - 4 1/2 2-1/8 0.496 1/2 20480600 1/2 0.02 4 1/2 2-1/8 0.496 1/2 20480700 1/2 0.03 4 1/2 2-1/8 0.496 1/2 20480800 1/2 0.06 4 1/2 2-1/8 0.496 1/2 20480900 5/8 - 6 5/8 2-3/8 0.621 5/8 20481000 5/8 0.03 6 5/8 2-3/8 0.621 5/8 20481100 5/8 0.06 6 5/8 2-3/8 0.621 5/8 20481200 5/8 0.09 6 5/8 2-3/8 0.621 5/8 20481300 3/4 - 6 3/4 2-1/2 0.746 3/4 20481400 3/4 0.06 6 3/4 2-1/2 0.746 3/4 20481500 3/4 0.09 6 3/4 2-1/2 0.746 3/4 20481600 3/4 0.12 6 3/4 2-1/2 0.746 3/4 20481700 1 - 6 1 3-3/8 0.992 1 20481800 1 0.06 6 1 3-3/8 0.992 1 20481900 1 0.09 6 1 3-3/8 0.992 1 20482000 1 0.12 6 1 3-3/8 0.992 1 Packed: 1 pc. EDPs above are stocked standard, DLC coating available upon request. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2048 good best WWW.OSGTOOL.COM EXOCARB® AERO 829
