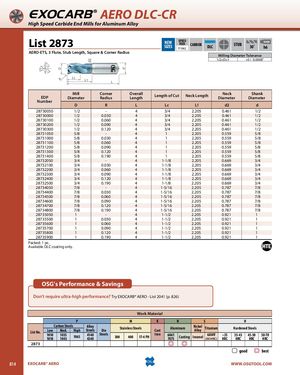

Общий каталог OSG 2018 - 2019 - страница 814

D d2 d EXOCARB® AERO DLC-CR High Speed Carbide End Mills for Aluminum Alloy List 2873 NEWSIZES SPEEDFEED CARBIDEP1062DLC SHANKSTUB30˚h6 AERO-ETS, 3 Flute, Stub Length, Square & Corner Radius Milling Diameter Tolerance 1/2≤D≤1 +0 / -0.0008" R Lc L1 L EDP Mill CornerDiameterRadiusOverallLengthLength of Cut Neck Length NeckDiameter ShankDiameter Number D R L Lc L1 d2 d 28730050 1/2 - 4 3/4 2.205 0.461 1/2 28730000 1/2 0.030 4 3/4 2.205 0.461 1/2 28730100 1/2 0.060 4 3/4 2.205 0.461 1/2 28730200 1/2 0.090 4 3/4 2.205 0.461 1/2 28730300 1/2 0.120 4 3/4 2.205 0.461 1/2 28731050 5/8 - 4 1 2.205 0.559 5/8 28731000 5/8 0.030 4 1 2.205 0.559 5/8 28731100 5/8 0.060 4 1 2.205 0.559 5/8 28731200 5/8 0.090 4 1 2.205 0.559 5/8 28731300 5/8 0.120 4 1 2.205 0.559 5/8 28731400 5/8 0.190 4 1 2.205 0.559 5/8 28732050 3/4 - 4 1-1/8 2.205 0.669 3/4 28732100 3/4 0.030 4 1-1/8 2.205 0.669 3/4 28732200 3/4 0.060 4 1-1/8 2.205 0.669 3/4 28732300 3/4 0.090 4 1-1/8 2.205 0.669 3/4 28732400 3/4 0.120 4 1-1/8 2.205 0.669 3/4 28732500 3/4 0.190 4 1-1/8 2.205 0.669 3/4 28734050 7/8 - 4 1-5/16 2.205 0.787 7/8 28734400 7/8 0.030 4 1-5/16 2.205 0.787 7/8 28734500 7/8 0.060 4 1-5/16 2.205 0.787 7/8 28734600 7/8 0.090 4 1-5/16 2.205 0.787 7/8 28734700 7/8 0.120 4 1-5/16 2.205 0.787 7/8 28734800 7/8 0.190 4 1-5/16 2.205 0.787 7/8 28735050 1 - 4 1-1/2 2.205 0.921 1 28735500 1 0.030 4 1-1/2 2.205 0.921 1 28735600 1 0.060 4 1-1/2 2.205 0.921 1 28735700 1 0.090 4 1-1/2 2.205 0.921 1 28735800 1 0.120 4 1-1/2 2.205 0.921 1 28735900 1 0.190 4 1-1/2 2.205 0.921 1 Packed: 1 pc. Available DLC coating only. OSG's Performance & Savings Don't require ultra-high performance? Try EXOCARB® AERO - List 2041 (p. 826) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2873 good best 814 EXOCARB® AERO WWW.OSGTOOL.COM
