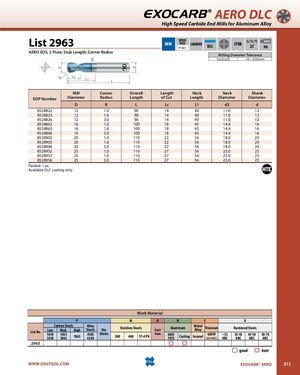

D d2 d EXOCARB® AERO DLC High Speed Carbide End Mills for Aluminum Alloy List 2963 SPEEDNEWFEEDCARBIDEP1061DLC SHANKSTUB25˚h6 AERO-EDS, 2 Flute, Stub Length, Corner Radius Milling Diameter Tolerance 12≤D≤25 +0 / -0.03mm R Lc L1 L Mill Corner Overall Length Neck Neck Shank EDP Number Diameter Radius Length of Cut Length Diameter Diameter D R L Lc L1 d2 d 8528822 12 1.0 90 14 40 11.0 12 8528823 12 1.6 90 14 40 11.0 12 8528826 12 3.0 90 14 40 11.0 12 8528862 16 1.0 100 18 45 14.4 16 8528863 16 1.6 100 18 45 14.4 16 8528866 16 3.0 100 18 45 14.4 16 8528902 20 1.0 110 22 56 18.0 20 8528903 20 1.6 110 22 56 18.0 20 8528906 20 3.0 110 22 56 18.0 20 8528952 25 1.0 110 27 56 23.0 25 8528953 25 1.6 110 27 56 23.0 25 8528956 25 3.0 110 27 56 23.0 25 Packed: 1 pc. Available DLC coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2963 good best WWW.OSGTOOL.COM EXOCARB® AERO 813
