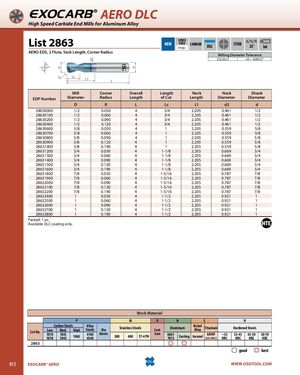

D d2 d EXOCARB® AERO DLC High Speed Carbide End Mills for Aluminum Alloy List 2863 SPEEDNEWFEEDCARBIDEP1061DLC SHANKSTUB25˚h6 AERO-EDS, 2 Flute, Stub Length, Corner Radius Milling Diameter Tolerance 1/2≤D≤1 +0 / -0.0012" R Lc L1 L Mill Corner Overall Length Neck Neck Shank EDP Number Diameter Radius Length of Cut Length Diameter Diameter D R L Lc L1 d2 d 28630000 1/2 0.030 4 3/4 2.205 0.461 1/2 28630100 1/2 0.060 4 3/4 2.205 0.461 1/2 28630200 1/2 0.090 4 3/4 2.205 0.461 1/2 28630400 1/2 0.120 4 3/4 2.205 0.461 1/2 28630600 5/8 0.030 4 1 2.205 0.559 5/8 28630700 5/8 0.060 4 1 2.205 0.559 5/8 28630800 5/8 0.090 4 1 2.205 0.559 5/8 28630900 5/8 0.120 4 1 2.205 0.559 5/8 28631000 5/8 0.190 4 1 2.205 0.559 5/8 28631200 3/4 0.030 4 1-1/8 2.205 0.669 3/4 28631300 3/4 0.060 4 1-1/8 2.205 0.669 3/4 28631400 3/4 0.090 4 1-1/8 2.205 0.669 3/4 28631500 3/4 0.120 4 1-1/8 2.205 0.669 3/4 28631600 3/4 0.190 4 1-1/8 2.205 0.669 3/4 28631800 7/8 0.030 4 1-5/16 2.205 0.787 7/8 28631900 7/8 0.060 4 1-5/16 2.205 0.787 7/8 28632000 7/8 0.090 4 1-5/16 2.205 0.787 7/8 28632100 7/8 0.120 4 1-5/16 2.205 0.787 7/8 28632200 7/8 0.190 4 1-5/16 2.205 0.787 7/8 28632400 1 0.030 4 1-1/2 2.205 0.921 1 28632500 1 0.060 4 1-1/2 2.205 0.921 1 28632600 1 0.090 4 1-1/2 2.205 0.921 1 28632700 1 0.120 4 1-1/2 2.205 0.921 1 28632800 1 0.190 4 1-1/2 2.205 0.921 1 Packed: 1 pc. Available DLC coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2863 good best 812 EXOCARB® AERO WWW.OSGTOOL.COM
