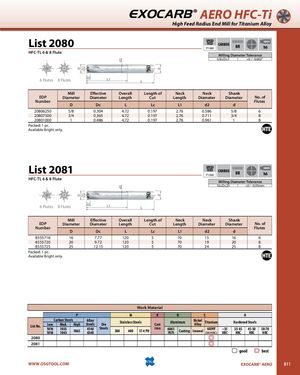

DD DcDc d2d2 dd EXOCARB® AERO HFC-Ti High Feed Radius End Mill for Titanium Alloy List 2080 SPEEDFEED CARBIDEP1060BR SHANKh6 HFC-TI, 6 & 8 Flute Milling Diameter Tolerance 5/8≤D≤1 +0 / -0.002” Lc 6 Flutes 8 Flutes L1 L Mill Effective Overall Length of Neck Neck Shank EDP Diameter Diameter Length Cut Length Diameter Diameter No. of Number Flutes D Dc L Lc L1 d2 d 20806250 5/8 0.304 4.72 0.197 2.76 0.586 5/8 6 20807500 3/4 0.365 4.72 0.197 2.76 0.711 3/4 8 20801000 1 0.486 4.72 0.197 2.76 0.961 1 8 Packed: 1 pc. Available Bright only. List 2081 SPEEDFEED CARBIDEP1060BR SHANKh6 HFC-TI, 6 & 8 Flute Milling Diameter Tolerance 16≤D≤25 +0 / -0.05mm Lc 6 Flutes 8 Flutes L1 L Mill Effective Overall Length of Neck Neck Shank EDP Diameter Diameter Length Cut Length Diameter Diameter No. of Number Flutes D Dc L Lc L1 d2 d 8555716 16 7.77 120 5 70 15 16 6 8555720 20 9.72 120 5 70 19 20 8 8555725 25 12.15 120 5 70 24 25 8 Packed: 1 pc. Available Bright only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2080 2081 good best WWW.OSGTOOL.COM EXOCARB® AERO 811
