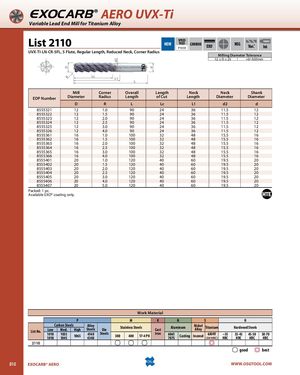

Общий каталог OSG 2018 - 2019 - страница 810

D d2 d EXOCARB® AERO UVX-Ti Variable Lead End Mill for Titanium Alloy List 2110 SPEEDNEWFEEDP1059CARBIDEEXO® SHANKREGVar.˚h6 UVX-TI-LN-CR-5FL, 5 Flute, Regular Length, Reduced Neck, Corner Radius Milling Diameter Tolerance 12 ≤ D ≤ 25 +0/-0.05mm R Lc L1 L Mill Corner Overall Length Neck Neck Shank EDP Number Diameter Radius Length of Cut Length Diameter Diameter D R L Lc L1 d2 d 8555321 12 1.0 90 24 36 11.5 12 8555322 12 1.5 90 24 36 11.5 12 8555323 12 2.0 90 24 36 11.5 12 8555324 12 2.5 90 24 36 11.5 12 8555325 12 3.0 90 24 36 11.5 12 8555326 12 4.0 90 24 36 11.5 12 8555361 16 1.0 100 32 48 15.5 16 8555362 16 1.5 100 32 48 15.5 16 8555363 16 2.0 100 32 48 15.5 16 8555364 16 2.5 100 32 48 15.5 16 8555365 16 3.0 100 32 48 15.5 16 8555366 16 4.0 100 32 48 15.5 16 8555401 20 1.0 120 40 60 19.5 20 8555402 20 1.5 120 40 60 19.5 20 8555403 20 2.0 120 40 60 19.5 20 8555404 20 2.5 120 40 60 19.5 20 8555405 20 3.0 120 40 60 19.5 20 8555406 20 4.0 120 40 60 19.5 20 8555407 20 5.0 120 40 60 19.5 20 Packed: 1 pc. Available EXO® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2110 good best 810 EXOCARB® AERO WWW.OSGTOOL.COM
