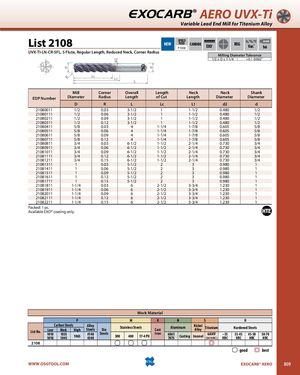

Общий каталог OSG 2018 - 2019 - страница 809

D d2 d EXOCARB® AERO UVX-Ti Variable Lead End Mill for Titanium Alloy List 2108 SPEEDNEWFEEDCARBIDEP1058EXO® SHANKREGVar.˚h6 UVX-TI-LN-CR-5FL, 5 Flute, Regular Length, Reduced Neck, Corner Radius Milling Diameter Tolerance 1/2 ≤ D ≤ 1-1/4 +0 / -0.002" R Lc L1 L Mill Corner Overall Length Neck Neck Shank EDP Number Diameter Radius Length of Cut Length Diameter Diameter D R L Lc L1 d2 d 21080011 1/2 0.03 3-1/2 1 1-1/2 0.480 1/2 21080111 1/2 0.06 3-1/2 1 1-1/2 0.480 1/2 21080211 1/2 0.09 3-1/2 1 1-1/2 0.480 1/2 21080311 1/2 0.12 3-1/2 1 1-1/2 0.480 1/2 21080411 5/8 0.03 4 1-1/4 1-7/8 0.605 5/8 21080511 5/8 0.06 4 1-1/4 1-7/8 0.605 5/8 21080611 5/8 0.09 4 1-1/4 1-7/8 0.605 5/8 21080711 5/8 0.12 4 1-1/4 1-7/8 0.605 5/8 21080811 3/4 0.03 6-1/2 1-1/2 2-1/4 0.730 3/4 21080911 3/4 0.06 6-1/2 1-1/2 2-1/4 0.730 3/4 21081011 3/4 0.09 6-1/2 1-1/2 2-1/4 0.730 3/4 21081111 3/4 0.12 6-1/2 1-1/2 2-1/4 0.730 3/4 21081211 3/4 0.15 6-1/2 1-1/2 2-1/4 0.730 3/4 21081311 1 0.03 5-1/2 2 3 0.980 1 21081411 1 0.06 5-1/2 2 3 0.980 1 21081511 1 0.09 5-1/2 2 3 0.980 1 21081611 1 0.12 5-1/2 2 3 0.980 1 21081711 1 0.15 5-1/2 2 3 0.980 1 21081811 1-1/4 0.03 6 2-1/2 3-3/4 1.230 1 21081911 1-1/4 0.06 6 2-1/2 3-3/4 1.230 1 21082011 1-1/4 0.09 6 2-1/2 3-3/4 1.230 1 21082111 1-1/4 0.12 6 2-1/2 3-3/4 1.230 1 21082211 1-1/4 0.15 6 2-1/2 3-3/4 1.230 1 Packed: 1 pc. Available EXO® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2108 good best WWW.OSGTOOL.COM EXOCARB® AERO 809
