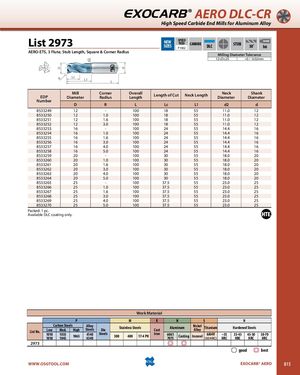

D d2 d EXOCARB® AERO DLC-CR High Speed Carbide End Mills for Aluminum Alloy List 2973 NEWSIZESSPEEDFEED CARBIDEP1062DLC SHANKSTUB30˚h6 AERO-ETS, 3 Flute, Stub Length, Square & Corner Radius Milling Diameter Tolerance 12≤D≤25 +0 / -0.02mm R Lc L1 L EDP Mill CornerDiameterRadiusOverallLengthLength of Cut Neck Length NeckDiameter ShankDiameter Number D R L Lc L1 d2 d 8533249 12 - 100 18 55 11.0 12 8533250 12 1.0 100 18 55 11.0 12 8533251 12 1.6 100 18 55 11.0 12 8533252 12 3.0 100 18 55 11.0 12 8533253 16 - 100 24 55 14.4 16 8533254 16 1.0 100 24 55 14.4 16 8533255 16 1.6 100 24 55 14.4 16 8533256 16 3.0 100 24 55 14.4 16 8533257 16 4.0 100 24 55 14.4 16 8533258 16 5.0 100 24 55 14.4 16 8533259 20 - 100 30 55 18.0 20 8533260 20 1.0 100 30 55 18.0 20 8533261 20 1.6 100 30 55 18.0 20 8533262 20 3.0 100 30 55 18.0 20 8533263 20 4.0 100 30 55 18.0 20 8533264 20 5.0 100 30 55 18.0 20 8533265 25 - 100 37.5 55 23.0 25 8533266 25 1.0 100 37.5 55 23.0 25 8533267 25 1.6 100 37.5 55 23.0 25 8533268 25 3.0 100 37.5 55 23.0 25 8533269 25 4.0 100 37.5 55 23.0 25 8533270 25 5.0 100 37.5 55 23.0 25 Packed: 1 pc. Available DLC coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2973 good best WWW.OSGTOOL.COM EXOCARB® AERO 815
