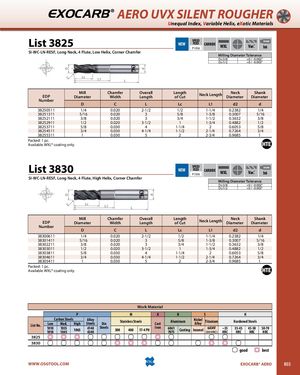

Общий каталог OSG 2018 - 2019 - страница 803

DD d d EXOCARB® AERO UVX SILENT ROUGHER Unequal Index, Variable Helix, eXotic Materials List 3825 SPEEDNEWFEEDP1056CARBIDEWXL SHANKVar.˚h6 SI-WC-LN-RESF, Long Neck, 4 Flute, Low Helix, Corner Chamfer Milling Diameter Tolerance D≤3/8 +0 / -0.002" D≥1/2 +0 / -0.003" C Lc L1 L EDP Mill Chamfer OverallDiameterWidthLengthLengthof Cut Neck Length NeckDiameterShankDiameter Number D C L Lc L1 d2 d 38250511 1/4 0.020 2-1/2 1/2 1-1/4 0.2382 1/4 38251311 5/16 0.020 3 5/8 1-3/8 0.3007 5/16 38252111 3/8 0.020 3 3/4 1-1/2 0.3632 3/8 38252911 1/2 0.020 3-1/2 1 1-3/4 0.4882 1/2 38253711 5/8 0.030 4 1-1/4 2 0.6053 5/8 38254511 3/4 0.030 4-1/4 1-1/2 2-1/4 0.7264 3/4 38255311 1 0.030 5 2 2-3/4 0.9685 1 Packed: 1 pc. Available WXL® coating only. List 3830 SPEEDNEWFEEDP1056CARBIDEWXL SHANKVar.˚h6 SI-WC-LN-RESF, Long Neck, 4 Flute, High Helix, Corner Chamfer Milling Diameter Tolerance D≤3/8 +0 / -0.002" D≥1/2 +0 / -0.003" C Lc L1 L EDP Mill Chamfer OverallDiameterWidthLengthLengthof Cut Neck Length NeckDiameterShankDiameter Number D C L Lc L1 d2 d 38300611 1/4 0.020 2-1/2 1/2 1-1/4 0.2382 1/4 38301411 5/16 0.020 3 5/8 1-3/8 0.3007 5/16 38302211 3/8 0.020 3 3/4 1-1/2 0.3632 3/8 38303011 1/2 0.020 3-1/2 1 1-3/4 0.4882 1/2 38303811 5/8 0.030 4 1-1/4 2 0.6053 5/8 38304611 3/4 0.030 4-1/4 1-1/2 2-1/4 0.7264 3/4 38305411 1 0.030 5 2 2-3/4 0.9685 1 Packed: 1 pc. Available WXL® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3825 3830 good best WWW.OSGTOOL.COM EXOCARB® AERO 803
