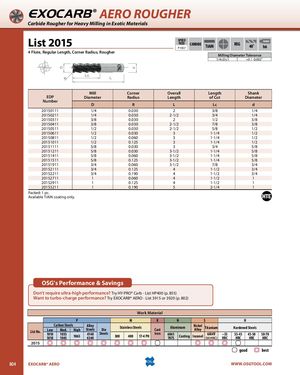

EXOCARB® AERO ROUGHER Carbide Rougher for Heavy Milling in Exotic Materials List 2015 SPEEDFEEDP1057CARBIDE TiAIN SHANKREG40˚h6 4 Flute, Regular Length, Corner Radius, Rougher Milling Diameter Tolerance 1/4≤D≤1 +0 / -0.002" Mill Corner Overall Length Shank EDP Diameter Radius Length of Cut Diameter Number D R L Lc d 20150111 1/4 0.030 2 3/8 1/4 20150211 1/4 0.030 2-1/2 3/4 1/4 20150311 3/8 0.030 2 1/2 3/8 20150411 3/8 0.030 2-1/2 7/8 3/8 20150511 1/2 0.030 2-1/2 5/8 1/2 20150611 1/2 0.030 3 1-1/4 1/2 20150811 1/2 0.060 3 1-1/4 1/2 20151011 1/2 0.125 3 1-1/4 1/2 20151111 5/8 0.030 3 3/4 5/8 20151211 5/8 0.030 3-1/2 1-1/4 5/8 20151411 5/8 0.060 3-1/2 1-1/4 5/8 20151511 5/8 0.125 3-1/2 1-1/4 5/8 20151911 3/4 0.060 3-1/2 7/8 3/4 20152111 3/4 0.125 4 1-1/2 3/4 20152211 3/4 0.190 4 1-1/2 3/4 20152711 1 0.060 4 1-1/2 1 20152911 1 0.125 4 1-1/2 1 20153211 1 0.190 5 2-1/4 1 Packed: 1 pc. Available TiAIN coating only. OSG's Performance & Savings Don't require ultra-high performance? Try HY-PRO® Carb - List HP400 (p. 855) Want to turbo-charge performance? Try EXOCARB® AERO - List 3915 or 3920 (p. 802) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie106541404340SteelsStainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2015 good best 804 EXOCARB® AERO WWW.OSGTOOL.COM
