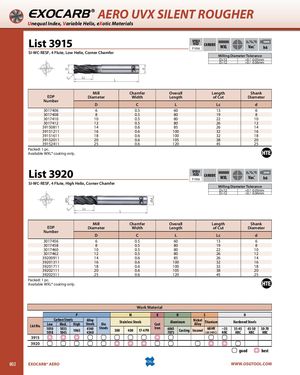

Общий каталог OSG 2018 - 2019 - страница 802

DØD d Ød EXOCARB® AERO UVX SILENT ROUGHER Unequal Index, Variable Helix, eXotic Materials List 3915 SPEEDFEEDP1056CARBIDEWXL SHANKVar.˚h6 SI-WC-RESF, 4 Flute, Low Helix, Corner Chamfer Milling Diameter Tolerance D≤12 +0 / -0.05mm D>12 +0 / -0.06mm C Lc L Mill Chamfer Overall Length Shank EDP Diameter Width Length of Cut Diameter Number D C L Lc d 3017406 6 0.5 60 13 6 3017408 8 0.5 80 19 8 3017410 10 0.5 80 22 10 3017412 12 0.5 80 26 12 39150811 14 0.6 85 26 14 39151211 16 0.6 100 32 16 39151611 18 0.6 100 32 18 39152011 20 0.6 105 38 20 39152411 25 0.6 120 45 25 Packed: 1 pc. Available WXL® coating only. List 3920 SPEEDFEEDP1056CARBIDEWXL SHANKVar.˚h6 SI-WC-RESF, 4 Flute, High Helix, Corner Chamfer Milling Diameter Tolerance D≤12 +0 / -0.05mm D>12 +0 / -0.06mm C Lc L Mill Chamfer Overall Length Shank EDP Diameter Width Length of Cut Diameter Number D C L Lc d 3017456 6 0.5 60 13 6 3017458 8 0.5 80 19 8 3017460 10 0.5 80 22 10 3017462 12 0.5 80 26 12 39200911 14 0.6 85 26 14 39201311 16 0.6 100 32 16 39201711 18 0.6 100 32 18 39202111 20 0.6 105 38 20 39202511 25 0.6 120 45 25 Packed: 1 pc. Available WXL® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3915 3920 good best 802 EXOCARB® AERO WWW.OSGTOOL.COM
