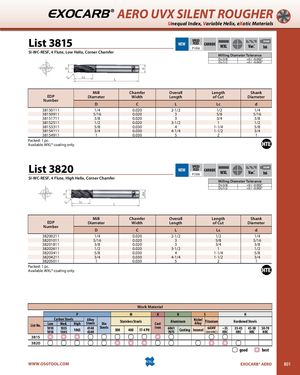

DD dØd EXOCARB® AERO UVX SILENT ROUGHER Unequal Index, Variable Helix, eXotic Materials List 3815 SPEEDNEWFEEDP1056CARBIDEWXL SHANKVar.˚h6 SI-WC-RESF, 4 Flute, Low Helix, Corner Chamfer Milling Diameter Tolerance D≤3/8 +0 / -0.002" D≥1/2 +0 / -0.003" C Lc L Mill Chamfer Overall Length Shank EDP Diameter Width Length of Cut Diameter Number D C L Lc d 38150111 1/4 0.020 2-1/2 1/2 1/4 38150911 5/16 0.020 3 5/8 5/16 38151711 3/8 0.020 3 3/4 3/8 38152511 1/2 0.020 3-1/2 1 1/2 38153311 5/8 0.030 4 1-1/4 5/8 38154111 3/4 0.030 4-1/4 1-1/2 3/4 38154911 1 0.030 5 2 1 Packed: 1 pc. Available WXL® coating only. List 3820 SPEEDNEWFEEDP1056CARBIDEWXL SHANKVar.˚h6 SI-WC-RESF, 4 Flute, High Helix, Corner Chamfer Milling Diameter Tolerance D≤3/8 +0 / -0.002" D≥1/2 +0 / -0.003" C Lc L Mill Chamfer Overall Length Shank EDP Diameter Width Length of Cut Diameter Number D C L Lc d 38200211 1/4 0.020 2-1/2 1/2 1/4 38201011 5/16 0.020 3 5/8 5/16 38201811 3/8 0.020 3 3/4 3/8 38202611 1/2 0.020 3-1/2 1 1/2 38203411 5/8 0.030 4 1-1/4 5/8 38204211 3/4 0.030 4-1/4 1-1/2 3/4 38205011 1 0.030 5 2 1 Packed: 1 pc. Available WXL® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3815 3820 good best WWW.OSGTOOL.COM EXOCARB® AERO 801
