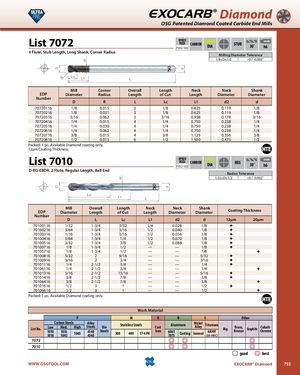

EXOCARB® Diamond OSG Patented Diamond Coated Carbide End Mills List 7072 SPEEDFEED CARBIDEP1052-1053DIA SHANKSTUB30˚h6 4 Flute, Stub Length, Long Shank, Corner Radius Milling Diameter Tolerance 1/8≤D≤1/2 +0 / -0.002" Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter Number D R L Lc L1 d2 d 70720116 1/8 0.015 3 1/8 0.625 0.119 1/8 70720216 1/8 0.031 3 1/8 0.625 0.119 1/8 70720316 3/16 0.062 3 3/16 0.938 0.178 3/16 70720416 1/4 0.015 4 1/4 0.750 0.238 1/4 70720516 1/4 0.030 4 1/4 0.750 0.238 1/4 70720616 1/4 0.062 4 1/4 0.750 0.238 1/4 70720716 3/8 0.015 4 3/8 1.125 0.356 3/8 70720816 1/2 0.015 6 1/2 1.500 0.475 1/2 Packed: 1 pc. Available Diamond coating only. 12µm Coating Thickness. List 7010 SPEEDFEED CARBIDEP1052-1053DIA SHANKREG30˚h6 D-RG-EBDR, 2 Flute, Regular Length, Ball End Radius Tolerance 1/32≤D≤1/2 +0 / -0.002" EDP Mill Overall Length Neck Neck ShankDiameterLengthof CutLengthDiameterDiameterCoating Thickness Number D L Lc L1 d2 d 12µm 20µm 70100116 1/32 1-3/4 3/32 1/4 0.028 1/8 F 70100216 3/64 1-3/4 3/16 1/2 0.040 1/8 F 70100316 1/16 1-3/4 3/16 1/2 0.056 1/8 F 70100416 5/64 1-3/4 1/4 1/2 0.070 1/8 F 70100516 3/32 1-3/4 3/8 1/2 0.088 1/8 F 70100716 1/8 1-3/4 1/2 — — 1/8 F 70105716 1/8 1-3/4 1/2 — — 1/8 F 70100816 5/32 2 9/16 — — 5/32 F 70100916 3/16 2 3/4 — — 3/16 F 70101116 1/4 2-1/2 3/4 — — 1/4 F 70106116 1/4 2-1/2 3/4 — — 1/4 F 70101316 5/16 2-1/2 13/16 — — 5/16 F 70101416 3/8 2-1/2 7/8 — — 3/8 F 70106416 3/8 2-1/2 7/8 — — 3/8 F 70101616 1/2 3 1 — — 1/2 F 70106616 1/2 3 1 — — 1/2 F Packed: 1 pc. Available Diamond coating only. Work Material P M K N S Other Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitanium60617075CastingInconel6Al4V(30 HRC)MgBrass,BronzeGraphiteCobalt-Chrome 7072 7010 good best WWW.OSGTOOL.COM EXOCARB® Diamond 793
