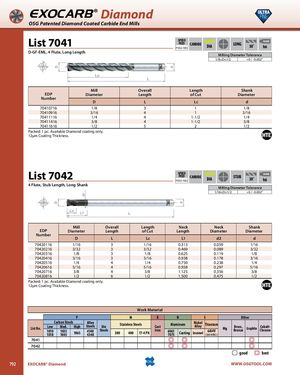

EXOCARB® Diamond OSG Patented Diamond Coated Carbide End Mills List 7041 SPEEDFEED CARBIDEP1052-1053DIA SHANKLONG30˚h6 D-GF-EML, 4 Flute, Long Length Milling Diameter Tolerance 1/8≤D≤1/2 +0 / -0.002" Mill Overall Length Shank EDP Diameter Length of Cut Diameter Number D L Lc d 70410716 1/8 3 1 1/8 70410916 3/16 4 1 3/16 70411116 1/4 4 1-1/2 1/4 70411416 3/8 4 1-1/2 3/8 70411616 1/2 5 2 1/2 Packed: 1 pc. Available Diamond coating only. 12µm Coating Thickness. List 7042 SPEEDFEED CARBIDEP1052-1053DIA SHANKSTUB30˚h6 4 Flute, Stub Length, Long Shank Milling Diameter Tolerance 1/16≤D≤1/2 +0 / -0.002" Mill Overall Length Neck Neck Shank EDP Diameter Length of Cut Length Diameter Diameter Number D L Lc L1 d2 d 70420116 1/16 3 1/16 0.313 0.059 1/16 70420216 3/32 3 3/32 0.469 0.089 3/32 70420316 1/8 3 1/8 0.625 0.119 1/8 70420416 3/16 3 3/16 0.938 0.178 3/16 70420516 1/4 4 1/4 0.750 0.238 1/4 70420616 5/16 4 5/16 0.938 0.297 5/16 70420716 3/8 4 3/8 1.125 0.356 3/8 70420816 1/2 6 1/2 1.500 0.475 1/2 Packed: 1 pc. Available Diamond coating only. 12µm Coating Thickness. Work Material P M K N S Other Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitanium60617075CastingInconel6Al4V(30 HRC)MgBrass,BronzeGraphiteCobalt-Chrome 7041 7042 good best 792 EXOCARB® Diamond WWW.OSGTOOL.COM
