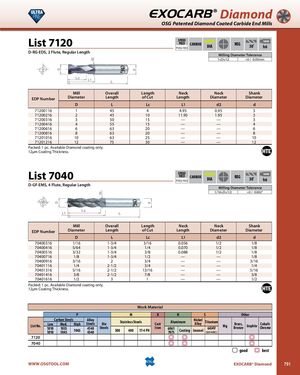

EXOCARB® Diamond OSG Patented Diamond Coated Carbide End Mills List 7120 SPEEDFEED CARBIDEP1052-1053DIA SHANKREG30˚h6 D-RG-EDS, 2 Flute, Regular Length Milling Diameter Tolerance 1≤D≤12 +0 / -0.05mm Mill Overall Length Neck Neck Shank EDP Number Diameter Length of Cut Length Diameter Diameter D L Lc L1 d2 d 71200116 1 45 4 4.95 0.95 3 71200216 2 45 10 11.95 1.95 3 71200316 3 50 15 — — 3 71200416 4 55 15 — — 4 71200616 6 63 20 — — 6 71200816 8 63 20 — — 8 71201016 10 63 25 — — 10 71201216 12 75 30 — — 12 Packed: 1 pc. Available Diamond coating only. 12µm Coating Thickness. List 7040 SPEEDFEED CARBIDEP1052-1053DIA SHANKREG30˚h6 D-GF-EMS, 4 Flute, Regular Length Milling Diameter Tolerance 1/16≤D≤1/2 +0 / -0.002" Mill Overall Length Neck Neck Shank EDP Number Diameter Length of Cut Length Diameter Diameter D L Lc L1 d2 d 70400316 1/16 1-3/4 3/16 0.056 1/2 1/8 70400416 5/64 1-3/4 1/4 0.070 1/2 1/8 70400516 3/32 1-3/4 3/8 0.088 1/2 1/8 70400716 1/8 1-3/4 1/2 — — 1/8 70400916 3/16 2 3/4 — — 3/16 70401116 1/4 2-1/2 3/4 — — 1/4 70401316 5/16 2-1/2 13/16 — — 5/16 70401416 3/8 2-1/2 7/8 — — 3/8 70401616 1/2 3 1 — — 1/2 Packed: 1 pc. Available Diamond coating only. 12µm Coating Thickness. Work Material P M K N S Other Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitanium60617075CastingInconel6Al4V(30 HRC)MgBrass,BronzeGraphiteCobalt-Chrome 7120 7040 good best WWW.OSGTOOL.COM EXOCARB® Diamond 791
