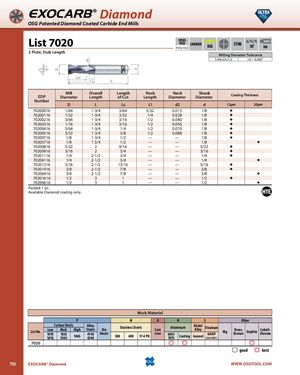

EXOCARB® Diamond OSG Patented Diamond Coated Carbide End Mills List 7020 SPEEDFEED CARBIDEP1052-1053DIA SHANKSTUB30˚h6 2 Flute, Stub Length Milling Diameter Tolerance 1/64≤D≤1/2 +0 / -0.002" Mill Overall Length Neck Neck ShankEDPDiameterLengthof CutLengthDiameterDiameterCoating Thickness Number D L Lc L1 d2 d 12µm 20µm 70200016 1/64 1-3/4 3/64 3/32 0.015 1/8 F 70200116 1/32 1-3/4 3/32 1/4 0.028 1/8 F 70200216 3/64 1-3/4 3/16 1/2 0.040 1/8 F 70200316 1/16 1-3/4 3/16 1/2 0.056 1/8 F 70200416 5/64 1-3/4 1/4 1/2 0.070 1/8 F 70200516 3/32 1-3/4 3/8 1/2 0.088 1/8 F 70200716 1/8 1-3/4 1/2 — — 1/8 F 70205716 1/8 1 3/4 1/2 — — 1/8 F 70200816 5/32 2 9/16 — — 5/32 F 70200916 3/16 2 3/4 — — 3/16 F 70201116 1/4 2-1/2 3/4 — — 1/4 F 70206116 1/4 2-1/2 3/4 — — 1/4 F 70201316 5/16 2-1/2 13/16 — — 5/16 F 70201416 3/8 2-1/2 7/8 — — 3/8 F 70206416 3/8 2-1/2 7/8 — — 3/8 F 70201616 1/2 3 1 — — 1/2 F 70206616 1/2 3 1 — — 1/2 F Packed: 1 pc. Available Diamond coating only. Work Material P M K N S Other Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitanium60617075CastingInconel6Al4V(30 HRC)MgBrass,BronzeGraphiteCobalt-Chrome 7020 good best 790 EXOCARB® Diamond WWW.OSGTOOL.COM
