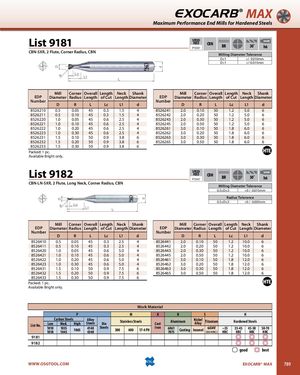

Общий каталог OSG 2018 - 2019 - страница 789

EXOCARB® MAX Maximum Performance End Mills for Hardened Steels List 9181 SPEEDFEED CBNP1047 BR SHANK30˚h6 CBN-SXR, 2 Flute, Corner Radius, CBN Milling Diameter Tolerance D≤1 +/- 0.010mm D>1 +/-0.015mm Mill Corner Overall Length Neck Shank Mill Corner Overall Length Neck Shank EDP Diameter Radius Length of Cut Length Diameter EDP Diameter Radius Length of Cut Length Diameter Number Number D R L Lc L1 d D R L Lc L1 d 8526210 0.5 0.05 45 0.3 1.5 4 8526241 2.0 0.10 50 1.2 5.0 6 8526211 0.5 0.10 45 0.3 1.5 4 8526242 2.0 0.20 50 1.2 5.0 6 8526220 1.0 0.05 45 0.6 2.5 4 8526243 2.0 0.30 50 1.2 5.0 6 8526221 1.0 0.10 45 0.6 2.5 4 8526245 2.0 0.50 50 1.2 5.0 6 8526222 1.0 0.20 45 0.6 2.5 4 8526261 3.0 0.10 50 1.8 6.0 6 8526223 1.0 0.30 45 0.6 2.5 4 8526262 3.0 0.20 50 1.8 6.0 6 8526231 1.5 0.10 50 0.9 3.8 6 8526263 3.0 0.30 50 1.8 6.0 6 8526232 1.5 0.20 50 0.9 3.8 6 8526265 3.0 0.50 50 1.8 6.0 6 8526233 1.5 0.30 50 0.9 3.8 6 Packed: 1 pc. Available Bright only. List 9182 SPEEDFEED CBNP1047 BR SHANK30˚h6 CBN-LN-SXR, 2 Flute, Long Neck, Corner Radius, CBN Milling Diameter Tolerance 0.5≤D≤3 +0 / -0.015mm Radius Tolerance 0.5≤D≤3 +0 / -0.005mm Mill Corner Overall Length Neck Shank Mill Corner Overall Length Neck Shank EDP Diameter Radius Length of Cut Length Diameter EDP Diameter Radius Length of Cut Length Diameter Number Number D R L Lc L1 d D R L Lc L1 d 8526410 0.5 0.05 45 0.3 2.5 4 8526441 2.0 0.10 50 1.2 10.0 6 8526411 0.5 0.10 45 0.3 2.5 4 8526442 2.0 0.20 50 1.2 10.0 6 8526420 1.0 0.05 45 0.6 5.0 4 8526443 2.0 0.30 50 1.2 10.0 6 8526421 1.0 0.10 45 0.6 5.0 4 8526445 2.0 0.50 50 1.2 10.0 6 8526422 1.0 0.20 45 0.6 5.0 4 8526461 3.0 0.10 50 1.8 12.0 6 8526423 1.0 0.30 45 0.6 5.0 4 8526462 3.0 0.20 50 1.8 12.0 6 8526431 1.5 0.10 50 0.9 7.5 6 8526463 3.0 0.30 50 1.8 12.0 6 8526432 1.5 0.20 50 0.9 7.5 6 8526465 3.0 0.50 50 1.8 12.0 6 8526433 1.5 0.30 50 0.9 7.5 6 Packed: 1 pc. Available Bright only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 9181 9182 good best WWW.OSGTOOL.COM EXOCARB® MAX 789
