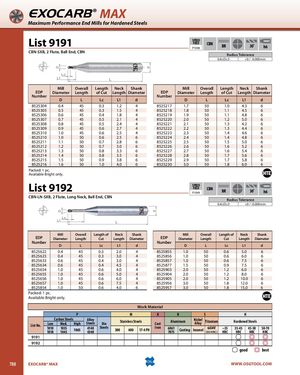

EXOCARB® MAX Maximum Performance End Mills for Hardened Steels List 9191 SPEEDFEED CBNP1048 BR SHANK30˚h6 CBN-SXB, 2 Flute, Ball End, CBN Radius Tolerance 0.4≤D≤3 +0 / -0.005mm Mill Overall Length Neck Shank Mill Overall Length Neck Shank EDP Diameter Length of Cut Length Diameter EDP Diameter Length of Cut Length Diameter Number Number D L Lc L1 d D L Lc L1 d 8525304 0.4 45 0.3 1.2 4 8525217 1.7 50 1.0 4.3 6 8525305 0.5 45 0.3 1.5 4 8525218 1.8 50 1.1 4.5 6 8525306 0.6 45 0.4 1.8 4 8525219 1.9 50 1.1 4.8 6 8525307 0.7 45 0.5 2.1 4 8525220 2.0 50 1.2 5.0 6 8525308 0.8 45 0.5 2.4 4 8525221 2.1 50 1.3 4.2 6 8525309 0.9 45 0.6 2.7 4 8525222 2.2 50 1.3 4.4 6 8525310 1.0 45 0.6 2.5 4 8525223 2.3 50 1.4 4.6 6 8525210 1.0 50 0.6 2.5 6 8525224 2.4 50 1.4 4.8 6 8525211 1.1 50 0.7 2.8 6 8525225 2.5 50 1.5 5.0 6 8525212 1.2 50 0.7 3.0 6 8525226 2.6 50 1.6 5.2 6 8525213 1.3 50 0.8 3.3 6 8525227 2.7 50 1.6 5.4 6 8525214 1.4 50 0.8 3.5 6 8525228 2.8 50 1.7 5.6 6 8525215 1.5 50 0.9 3.8 6 8525229 2.9 50 1.7 5.8 6 8525216 1.6 50 1.0 4.0 6 8525230 3.0 50 1.8 6.0 6 Packed: 1 pc. Available Bright only. List 9192 SPEEDFEED CBNP1049 BR SHANK30˚h6 CBN-LN-SXB, 2 Flute, Long Neck, Ball End, CBN Radius Tolerance 0.4≤D≤3 +0 / -0.005mm Mill Overall Length of Neck Shank Mill Overall Length of Neck Shank EDP Diameter Length Cut Length Diameter EDP Diameter Length Cut Length Diameter Number Number D L Lc L1 d D L Lc L1 d 8525622 0.4 45 0.3 2.0 4 8525855 1.0 50 0.6 5.0 6 8525623 0.4 45 0.3 3.0 4 8525856 1.0 50 0.6 6.0 6 8525633 0.6 45 0.4 3.0 4 8525857 1.0 50 0.6 7.5 6 8525634 0.6 45 0.4 4.5 4 8525877 1.5 50 0.9 7.5 6 8525654 1.0 45 0.6 4.0 4 8525903 2.0 50 1.2 6.0 6 8525655 1.0 45 0.6 5.0 4 8525904 2.0 50 1.2 8.0 6 8525656 1.0 45 0.6 6.0 4 8525905 2.0 50 1.2 10.0 6 8525657 1.0 45 0.6 7.5 4 8525956 3.0 50 1.8 12.0 6 8525854 1.0 50 0.6 4.0 6 8525957 3.0 50 1.8 15.0 6 Packed: 1 pc. Available Bright only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 9191 9192 good best 788 EXOCARB® MAX WWW.OSGTOOL.COM
