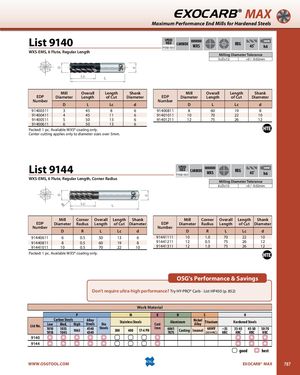

EXOCARB® MAX Maximum Performance End Mills for Hardened Steels List 9140 SPEEDFEED CARBIDEP1050-1051WXS SHANKREG45˚h6 WXS-EMS, 6 Flute, Regular Length Milling Diameter Tolerance 3≤D≤12 +0 / -0.02mm Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter EDP Diameter Length of Cut Diameter Number Number D L Lc d D L Lc d 91400311 3 45 8 6 91400811 8 60 19 8 91400411 4 45 11 6 91401011 10 70 22 10 91400511 5 50 13 6 91401211 12 75 26 12 91400611 6 50 13 6 Packed: 1 pc. Available WXS® coating only. Center cutting applies only to diameter sizes over 5mm. List 9144 SPEEDFEED CARBIDEP1050-1051WXS SHANKREG45˚h6 WXS-EMS, 6 Flute, Regular Length, Corner Radius Milling Diameter Tolerance 6≤D≤12 +0 / -0.02mm R Mill Corner Overall Length Shank Mill Corner Overall Length Shank EDP Diameter Radius Length of Cut Diameter EDP Diameter Radius Length of Cut Diameter Number Number D R L Lc d D R L Lc d 91440611 6 0.5 50 13 6 91441111 10 1.0 70 22 10 91440811 8 0.5 60 19 8 91441211 12 0.5 75 26 12 91441011 10 0.5 70 22 10 91441311 12 1.0 75 26 12 Packed: 1 pc. Available WXS® coating only. OSG's Performance & Savings Don't require ultra-high performance? Try HY-PRO® Carb - List HP450 (p. 852) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 9140 9144 good best WWW.OSGTOOL.COM EXOCARB® MAX 787
