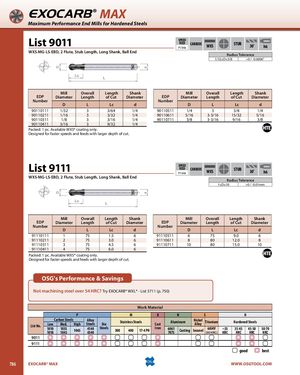

Общий каталог OSG 2018 - 2019 - страница 786

EXOCARB® MAX Maximum Performance End Mills for Hardened Steels List 9011 SPEEDFEEDP1046CARBIDE WXS SHANKSTUB30˚h6 WXS-MG-LS-EBD, 2 Flute, Stub Length, Long Shank, Ball End Radius Tolerance 1/32≤D≤3/8 +0 / -0.0006" Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter EDP Diameter Length of Cut Diameter Number Number D L Lc d D L Lc d 90110111 1/32 3 3/64 1/4 90110511 1/4 3 3/8 1/4 90110211 1/16 3 3/32 1/4 90110611 5/16 3-3/16 15/32 5/16 90110311 1/8 3 3/16 1/4 90110711 3/8 3-3/16 9/16 3/8 90110411 3/16 3 9/32 1/4 Packed: 1 pc. Available WXS® coating only. Designed for faster speeds and feeds with larger depth of cut. List 9111 SPEEDFEEDP1046CARBIDE WXS SHANKSTUB30˚h6 WXS-MG-LS-EBD, 2 Flute, Stub Length, Long Shank, Ball End Radius Tolerance 1≤D≤10 +0 / -0.01mm Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter EDP Diameter Length of Cut Diameter Number Number D L Lc d D L Lc d 91110111 1 75 1.5 6 91110511 6 75 9.0 6 91110211 2 75 3.0 6 91110611 8 80 12.0 8 91110311 3 75 4.5 6 91110711 10 80 15.0 10 91110411 4 75 6.0 6 Packed: 1 pc. Available WXS® coating only. Designed for faster speeds and feeds with larger depth of cut. OSG's Performance & Savings Not machining steel over 54 HRC? Try EXOCARB® WXL® - List 3711 (p. 750) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 9011 9111 good best 786 EXOCARB® MAX WWW.OSGTOOL.COM
