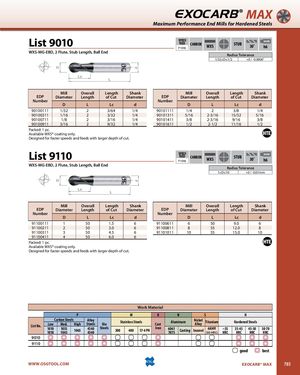

EXOCARB® MAX Maximum Performance End Mills for Hardened Steels List 9010 SPEEDFEEDP1046CARBIDE WXS SHANKSTUB30˚h6 WXS-MG-EBD, 2 Flute, Stub Length, Ball End Radius Tolerance 1/32≤D≤1/2 +0 / -0.0006" Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter EDP Diameter Length of Cut Diameter Number Number D L Lc d D L Lc d 90100111 1/32 2 3/64 1/4 90101111 1/4 2 3/8 1/4 90100311 1/16 2 3/32 1/4 90101311 5/16 2-3/16 15/32 5/16 90100711 1/8 2 3/16 1/4 90101411 3/8 2-3/16 9/16 3/8 90100911 3/16 2 9/32 1/4 90101611 1/2 2-1/2 11/16 1/2 Packed: 1 pc. Available WXS® coating only. Designed for faster speeds and feeds with larger depth of cut. List 9110 SPEEDFEEDP1046CARBIDE WXS SHANKSTUB30˚h6 WXS-MG-EBD, 2 Flute, Stub Length, Ball End Radius Tolerance 1≤D≤10 +0 / -0.01mm Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter EDP Diameter Length of Cut Diameter Number Number D L Lc d D L Lc d 91100111 1 50 1.5 6 91100611 6 50 9.0 6 91100211 2 50 3.0 6 91100811 8 55 12.0 8 91100311 3 50 4.5 6 91101011 10 55 15.0 10 91100411 4 50 6.0 6 Packed: 1 pc. Available WXS® coating only. Designed for faster speeds and feeds with larger depth of cut. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 9010 9110 good best WWW.OSGTOOL.COM EXOCARB® MAX 785
