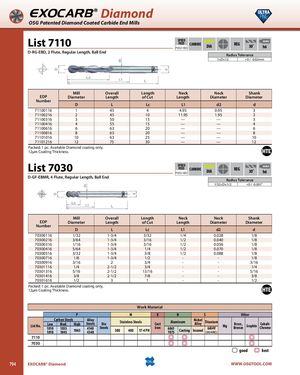

Общий каталог OSG 2018 - 2019 - страница 794

EXOCARB® Diamond OSG Patented Diamond Coated Carbide End Mills List 7110 SPEEDFEED CARBIDEP1052-1053DIA SHANKREG30˚h6 D-RG-EBD, 2 Flute, Regular Length, Ball End Radius Tolerance 1≤D≤12 +0 / -0.02mm Mill Overall Length Neck Neck Shank EDP Diameter Length of Cut Length Diameter Diameter Number D L Lc L1 d2 d 71100116 1 45 4 4.95 0.95 3 71100216 2 45 10 11.95 1.95 3 71100316 3 50 15 — — 3 71100416 4 55 15 — — 4 71100616 6 63 20 — — 6 71100816 8 63 20 — — 8 71101016 10 63 25 — — 10 71101216 12 75 30 — — 12 Packed: 1 pc. Available Diamond coating only. 12µm Coating Thickness. List 7030 SPEEDFEED CARBIDEP1052-1053DIA SHANKREG30˚h6 D-GF-EBMR, 4 Flute, Regular Length, Ball End Radius Tolerance 1/32≤D≤1/2 +0 / -0.001" Mill Overall Length Neck Neck Shank EDP Diameter Length of Cut Length Diameter Diameter Number D L Lc L1 d2 d 70300116 1/32 1-3/4 3/32 1/4 0.028 1/8 70300216 3/64 1-3/4 3/16 1/2 0.040 1/8 70300316 1/16 1-3/4 3/16 1/2 0.056 1/8 70300416 5/64 1-3/4 1/4 1/2 0.070 1/8 70300516 3/32 1-3/4 3/8 1/2 0.088 1/8 70300716 1/8 1-3/4 1/2 - - 1/8 70300916 3/16 2 3/4 - - 3/16 70301116 1/4 2-1/2 3/4 - - 1/4 70301316 5/16 2-1/2 13/16 - - 5/16 70301416 3/8 2-1/2 7/8 - - 3/8 70301616 1/2 3 1 - - 1/2 Packed: 1 pc. Available Diamond coating only. 12µm Coating Thickness. Work Material P M K N S Other Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitanium60617075CastingInconel6Al4V(30 HRC)MgBrass,BronzeGraphiteCobalt-Chrome 7110 7030 good best 794 EXOCARB® Diamond WWW.OSGTOOL.COM
