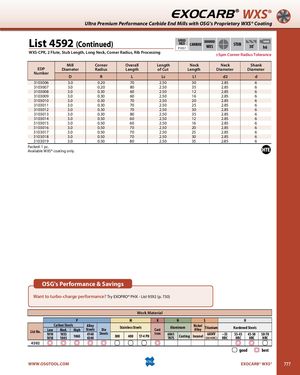

Общий каталог OSG 2018 - 2019 - страница 777

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4592 (Continued) SPEEDFEEDP1037CARBIDE WXS SHANKSTUB30˚h6 WXS-CPR, 2 Flute, Stub Length, Long Neck, Corner Radius, Rib Processing ±5µm Corner Radius Tolerance Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter Number D R L Lc L1 d2 d 3103006 3.0 0.20 70 2.50 30 2.85 6 3103007 3.0 0.20 80 2.50 35 2.85 6 3103008 3.0 0.30 60 2.50 12 2.85 6 3103009 3.0 0.30 60 2.50 16 2.85 6 3103010 3.0 0.30 70 2.50 20 2.85 6 3103011 3.0 0.30 70 2.50 25 2.85 6 3103012 3.0 0.30 70 2.50 30 2.85 6 3103013 3.0 0.30 80 2.50 35 2.85 6 3103014 3.0 0.50 60 2.50 12 2.85 6 3103015 3.0 0.50 60 2.50 16 2.85 6 3103016 3.0 0.50 70 2.50 20 2.85 6 3103017 3.0 0.50 70 2.50 25 2.85 6 3103018 3.0 0.50 70 2.50 30 2.85 6 3103019 3.0 0.50 80 2.50 35 2.85 6 Packed: 1 pc. Available WXS® coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOPRO® PHX - List 9592 (p. 730) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4592 good best WWW.OSGTOOL.COM EXOCARB® WXS® 777
