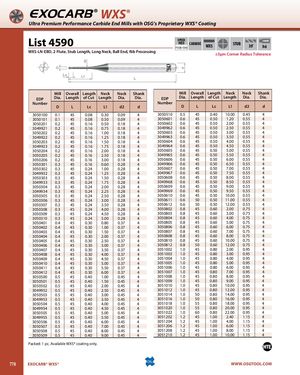

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4590 SPEEDFEED CARBIDEP1038-1040WXS SHANKSTUB30˚h6 WXS-LN-EBD, 2 Flute, Stub Length, Long Neck, Ball End, Rib Processing ±5µm Corner Radius Tolerance Mill Overall Length Neck Neck Shank Mill Overall Length Neck Neck Shank EDP Dia. Length of Cut Length Dia. Dia. EDP Dia. Length of Cut Length Dia. Dia. Number Number D L Lc L1 d2 d D L Lc L1 d2 d 3050100 0.1 45 0.08 0.30 0.09 4 3050510 0.5 45 0.40 10.00 0.45 4 3050101 0.1 45 0.08 0.50 0.09 4 3050601 0.6 45 0.50 1.20 0.55 4 3050201 0.2 45 0.16 0.50 0.18 4 3050602 0.6 45 0.50 2.00 0.55 4 3049921 0.2 45 0.16 0.75 0.18 4 3049962 0.6 45 0.50 2.50 0.55 4 3050202 0.2 45 0.16 1.00 0.18 4 3050603 0.6 45 0.50 3.00 0.55 4 3049922 0.2 45 0.16 1.25 0.18 4 3049963 0.6 45 0.50 3.50 0.55 4 3050203 0.2 45 0.16 1.50 0.18 4 3050604 0.6 45 0.50 4.00 0.55 4 3049923 0.2 45 0.16 1.75 0.18 4 3049964 0.6 45 0.50 4.50 0.55 4 3050204 0.2 45 0.16 2.00 0.18 4 3050605 0.6 45 0.50 5.00 0.55 4 3050205 0.2 45 0.16 2.50 0.18 4 3049965 0.6 45 0.50 5.50 0.55 4 3050206 0.2 45 0.16 3.00 0.18 4 3050606 0.6 45 0.50 6.00 0.55 4 3050301 0.3 45 0.16 0.60 0.28 4 3049966 0.6 45 0.50 6.50 0.55 4 3050302 0.3 45 0.24 1.00 0.28 4 3050607 0.6 45 0.50 7.00 0.55 4 3049932 0.3 45 0.24 1.25 0.28 4 3049967 0.6 45 0.50 7.50 0.55 4 3050303 0.3 45 0.24 1.50 0.28 4 3050608 0.6 45 0.50 8.00 0.55 4 3049933 0.3 45 0.24 1.75 0.28 4 3049968 0.6 45 0.50 8.50 0.55 4 3050304 0.3 45 0.24 2.00 0.28 4 3050609 0.6 45 0.50 9.00 0.55 4 3049934 0.3 45 0.24 2.25 0.28 4 3049969 0.6 45 0.50 9.50 0.55 4 3050305 0.3 45 0.24 2.50 0.28 4 3050610 0.6 45 0.50 10.00 0.55 4 3050306 0.3 45 0.24 3.00 0.28 4 3050611 0.6 50 0.50 11.00 0.55 4 3050307 0.3 45 0.24 3.50 0.28 4 3050612 0.6 50 0.50 12.00 0.55 4 3050308 0.3 45 0.24 4.00 0.28 4 3050802 0.8 45 0.60 2.00 0.75 4 3050309 0.3 45 0.24 4.50 0.28 4 3050803 0.8 45 0.60 3.00 0.75 4 3050310 0.3 45 0.24 5.00 0.28 4 3050804 0.8 45 0.60 4.00 0.75 4 3050401 0.4 45 0.30 0.80 0.37 4 3050805 0.8 45 0.60 5.00 0.75 4 3050402 0.4 45 0.30 1.00 0.37 4 3050806 0.8 45 0.60 6.00 0.75 4 3050403 0.4 45 0.30 1.50 0.37 4 3050807 0.8 45 0.60 7.00 0.75 4 3050404 0.4 45 0.30 2.00 0.37 4 3050808 0.8 45 0.60 8.00 0.75 4 3050405 0.4 45 0.30 2.50 0.37 4 3050810 0.8 45 0.60 10.00 0.75 4 3050406 0.4 45 0.30 3.00 0.37 4 3050812 0.8 50 0.60 12.00 0.75 4 3050407 0.4 45 0.30 3.50 0.37 4 3051002 1.0 45 0.80 2.00 0.95 4 3050408 0.4 45 0.30 4.00 0.37 4 3051003 1.0 45 0.80 3.00 0.95 4 3050409 0.4 45 0.30 4.50 0.37 4 3051004 1.0 45 0.80 4.00 0.95 4 3050410 0.4 45 0.30 5.00 0.37 4 3051005 1.0 45 0.80 5.00 0.95 4 3050411 0.4 45 0.30 5.50 0.37 4 3051006 1.0 45 0.80 6.00 0.95 4 3050412 0.4 45 0.30 6.00 0.37 4 3051007 1.0 45 0.80 7.00 0.95 4 3050500 0.5 45 0.40 1.00 0.45 4 3051008 1.0 45 0.80 8.00 0.95 4 3050501 0.5 45 0.40 1.50 0.45 4 3051009 1.0 45 0.80 9.00 0.95 4 3050502 0.5 45 0.40 2.00 0.45 4 3051010 1.0 45 0.80 10.00 0.95 4 3049952 0.5 45 0.40 2.50 0.45 4 3051012 1.0 45 0.80 12.00 0.95 4 3050503 0.5 45 0.40 3.00 0.45 4 3051014 1.0 50 0.80 14.00 0.95 4 3049953 0.5 45 0.40 3.50 0.45 4 3051016 1.0 50 0.80 16.00 0.95 4 3050504 0.5 45 0.40 4.00 0.45 4 3051018 1.0 55 0.80 18.00 0.95 4 3049954 0.5 45 0.40 4.50 0.45 4 3051020 1.0 55 0.80 20.00 0.95 4 3050505 0.5 45 0.40 5.00 0.45 4 3051022 1.0 60 0.80 22.00 0.95 4 3049955 0.5 45 0.40 5.50 0.45 4 3051202 1.2 45 1.00 2.40 1.15 4 3050506 0.5 45 0.40 6.00 0.45 4 3051204 1.2 45 1.00 4.00 1.15 4 3050507 0.5 45 0.40 7.00 0.45 4 3051206 1.2 45 1.00 6.00 1.15 4 3050508 0.5 45 0.40 8.00 0.45 4 3051208 1.2 45 1.00 8.00 1.15 4 3050509 0.5 45 0.40 9.00 0.45 4 3051210 1.2 45 1.00 10.00 1.15 4 Packed: 1 pc. Available WXS® coating only. 778 EXOCARB® WXS® WWW.OSGTOOL.COM
