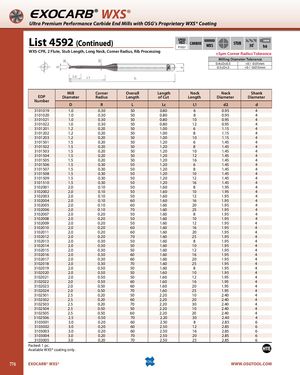

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4592 (Continued) SPEEDFEED P1037 CARBIDE WXS SHANKSTUB30˚h6 WXS-CPR, 2 Flute, Stub Length, Long Neck, Corner Radius, Rib Processing ±5µm Corner Radius Tolerance Milling Diameter Tolerance 0.4≤D≤0.5 +0 / -0.01mm 0.5≤D≤3 +0 / -0.015mm Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter Number D R L Lc L1 d2 d 3101019 1.0 0.30 50 0.80 6 0.95 4 3101020 1.0 0.30 50 0.80 8 0.95 4 3101021 1.0 0.30 50 0.80 10 0.95 4 3101022 1.0 0.30 50 0.80 12 0.95 4 3101201 1.2 0.20 50 1.00 6 1.15 4 3101202 1.2 0.20 50 1.00 8 1.15 4 3101203 1.2 0.20 50 1.00 10 1.15 4 3101501 1.5 0.20 50 1.20 6 1.45 4 3101502 1.5 0.20 50 1.20 8 1.45 4 3101503 1.5 0.20 50 1.20 10 1.45 4 3101504 1.5 0.20 50 1.20 12 1.45 4 3101505 1.5 0.20 50 1.20 16 1.45 4 3101506 1.5 0.30 50 1.20 6 1.45 4 3101507 1.5 0.30 50 1.20 8 1.45 4 3101508 1.5 0.30 50 1.20 10 1.45 4 3101509 1.5 0.30 50 1.20 12 1.45 4 3101510 1.5 0.30 50 1.20 16 1.45 4 3102001 2.0 0.10 50 1.60 8 1.95 4 3102002 2.0 0.10 50 1.60 10 1.95 4 3102003 2.0 0.10 50 1.60 12 1.95 4 3102004 2.0 0.10 60 1.60 16 1.95 4 3102005 2.0 0.10 60 1.60 20 1.95 4 3102006 2.0 0.10 70 1.60 25 1.95 4 3102007 2.0 0.20 50 1.60 8 1.95 4 3102008 2.0 0.20 50 1.60 10 1.95 4 3102009 2.0 0.20 50 1.60 12 1.95 4 3102010 2.0 0.20 60 1.60 16 1.95 4 3102011 2.0 0.20 60 1.60 20 1.95 4 3102012 2.0 0.20 70 1.60 25 1.95 4 3102013 2.0 0.30 50 1.60 8 1.95 4 3102014 2.0 0.30 50 1.60 10 1.95 4 3102015 2.0 0.30 50 1.60 12 1.95 4 3102016 2.0 0.30 60 1.60 16 1.95 4 3102017 2.0 0.30 60 1.60 20 1.95 4 3102018 2.0 0.30 70 1.60 25 1.95 4 3102019 2.0 0.50 50 1.60 8 1.95 4 3102020 2.0 0.50 50 1.60 10 1.95 4 3102021 2.0 0.50 50 1.60 12 1.95 4 3102022 2.0 0.50 60 1.60 16 1.95 4 3102023 2.0 0.50 60 1.60 20 1.95 4 3102024 2.0 0.50 70 1.60 25 1.95 4 3102501 2.5 0.20 50 2.20 10 2.40 4 3102502 2.5 0.20 60 2.20 20 2.40 4 3102503 2.5 0.20 70 2.20 30 2.40 4 3102504 2.5 0.50 50 2.20 10 2.40 4 3102505 2.5 0.50 60 2.20 20 2.40 4 3102506 2.5 0.50 70 2.20 30 2.40 4 3103001 3.0 0.20 60 2.50 8 2.85 6 3103002 3.0 0.20 60 2.50 12 2.85 6 3103003 3.0 0.20 60 2.50 16 2.85 6 3103004 3.0 0.20 70 2.50 20 2.85 6 3103005 3.0 0.20 70 2.50 25 2.85 6 Packed: 1 pc. Available WXS® coating only. 776 EXOCARB® WXS® WWW.OSGTOOL.COM
