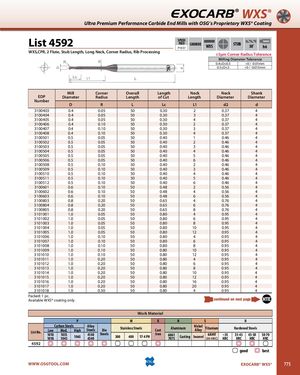

Общий каталог OSG 2018 - 2019 - страница 775

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4592 SPEEDFEEDP1037CARBIDE WXS SHANKSTUB30˚h6 WXS,CPR, 2 Flute, Stub Length, Long Neck, Corner Radius, Rib Processing ±5µm Corner Radius Tolerance Milling Diameter Tolerance 0.4≤D≤0.5 +0 / -0.01mm 0.5≤D≤3 +0 / -0.015mm Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter Number D R L Lc L1 d2 d 3100403 0.4 0.05 50 0.30 2 0.37 4 3100404 0.4 0.05 50 0.30 3 0.37 4 3100405 0.4 0.05 50 0.30 4 0.37 4 3100406 0.4 0.10 50 0.30 2 0.37 4 3100407 0.4 0.10 50 0.30 3 0.37 4 3100408 0.4 0.10 50 0.30 4 0.37 4 3100501 0.5 0.05 50 0.40 1 0.46 4 3100502 0.5 0.05 50 0.40 2 0.46 4 3100503 0.5 0.05 50 0.40 3 0.46 4 3100504 0.5 0.05 50 0.40 4 0.46 4 3100505 0.5 0.05 50 0.40 5 0.46 4 3100506 0.5 0.05 50 0.40 6 0.46 4 3100508 0.5 0.10 50 0.40 2 0.46 4 3100509 0.5 0.10 50 0.40 3 0.46 4 3100510 0.5 0.10 50 0.40 4 0.46 4 3100511 0.5 0.10 50 0.40 5 0.46 4 3100512 0.5 0.10 50 0.40 6 0.46 4 3100601 0.6 0.10 50 0.48 2 0.56 4 3100602 0.6 0.10 50 0.48 4 0.56 4 3100603 0.6 0.10 50 0.48 6 0.56 4 3100803 0.8 0.20 50 0.65 4 0.76 4 3100804 0.8 0.20 50 0.65 6 0.76 4 3100805 0.8 0.20 50 0.65 8 0.76 4 3101001 1.0 0.05 50 0.80 4 0.95 4 3101002 1.0 0.05 50 0.80 6 0.95 4 3101003 1.0 0.05 50 0.80 8 0.95 4 3101004 1.0 0.05 50 0.80 10 0.95 4 3101005 1.0 0.05 50 0.80 12 0.95 4 3101006 1.0 0.10 50 0.80 4 0.95 4 3101007 1.0 0.10 50 0.80 6 0.95 4 3101008 1.0 0.10 50 0.80 8 0.95 4 3101009 1.0 0.10 50 0.80 10 0.95 4 3101010 1.0 0.10 50 0.80 12 0.95 4 3101011 1.0 0.20 50 0.80 4 0.95 4 3101012 1.0 0.20 50 0.80 6 0.95 4 3101013 1.0 0.20 50 0.80 8 0.95 4 3101014 1.0 0.20 50 0.80 10 0.95 4 3101015 1.0 0.20 50 0.80 12 0.95 4 3101016 1.0 0.20 50 0.80 16 0.95 4 3101017 1.0 0.20 50 0.80 20 0.95 4 3101018 1.0 0.30 50 0.80 4 0.95 4 Packed: 1 pc. Available WXS® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4592 good best WWW.OSGTOOL.COM EXOCARB® WXS® 775
