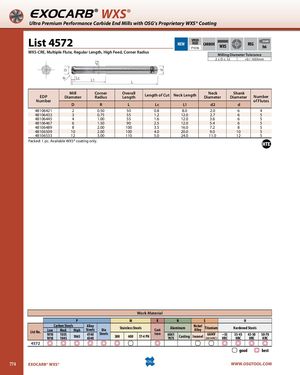

D d2 d EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4572 SPEEDNEWFEEDP1036CARBIDEWXS SHANKREGh6 WXS-CRE, Multiple Flute, Regular Length, High Feed, Corner Radius Milling Diameter Tolerance 2 ≤ D ≤ 12 +0 / -0.03mm R Lc L1 L EDP Mill CornerDiameterRadiusOverallLengthLength of Cut Neck Length NeckDiameter ShankDiameterNumber Number of Flutes D R L Lc L1 d2 d 48106421 2 0.50 50 0.8 8.0 2.0 6 4 48106433 3 0.75 55 1.2 12.0 2.7 6 5 48106445 4 1.00 55 1.6 12.0 3.6 6 5 48106467 6 1.50 90 2.5 12.0 5.4 6 5 48106489 8 2.00 100 3.5 16.0 7.2 8 5 48106509 10 2.00 100 4.0 20.0 9.0 10 5 48106533 12 3.00 110 5.0 24.0 11.0 12 5 Packed: 1 pc. Available WXS® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4572 good best 774 EXOCARB® WXS® WWW.OSGTOOL.COM
