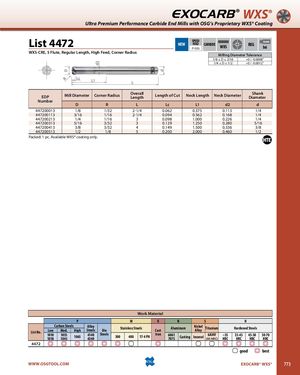

D d2 d EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4472 SPEEDNEWFEEDP1035CARBIDEWXS SHANKREGh6 WXS-CRE, 5 Flute, Regular Length, High Feed, Corner Radius Milling Diameter Tolerance 1/8 ≤ D ≤ 3/16 +0 / -0.0008" 1/4 ≤ D ≤ 1/2 +0 / -0.0012" R Lc L1 L EDP Mill Diameter Corner Radius OverallLength Length of Cut Neck Length Neck Diameter ShankDiameter Number D R L Lc L1 d2 d 447200013 1/8 1/32 2-1/4 0.062 0.375 0.113 1/4 447200113 3/16 1/16 2-1/4 0.094 0.562 0.168 1/4 447200213 1/4 1/16 3 0.098 1.000 0.226 1/4 447200313 5/16 3/32 3 0.129 1.250 0.280 5/16 447200413 3/8 3/32 4 0.149 1.500 0.336 3/8 447200513 1/2 1/8 5 0.200 2.000 0.460 1/2 Packed: 1 pc. Available WXS® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4472 good best WWW.OSGTOOL.COM EXOCARB® WXS® 773
