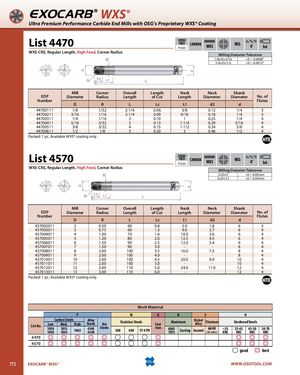

Общий каталог OSG 2018 - 2019 - страница 772

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4470 SPEEDFEEDP1033CARBIDE WXS SHANKREG0˚h6 WXS-CRE, Regular Length, High Feed, Corner Radius Milling Diameter Tolerance 1/8≤D≤3/16 +0 / -0.0008" 1/4≤D≤1/2 +0 / -0.0012" Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter No. of Number Flutes D R L Lc L1 d2 d 44700111 1/8 1/32 2-1/4 0.06 3/8 0.12 1/4 3 44700211 3/16 1/16 2-1/4 0.09 9/16 0.18 1/4 3 44700311 1/4 1/16 3 0.10 1 0.23 1/4 4 44700411 5/16 3/32 3 0.13 1-1/4 0.29 5/16 4 44700511 3/8 3/32 4 0.15 1-1/2 0.34 3/8 4 44700611 1/2 1/8 5 0.20 2 0.46 1/2 4 Packed: 1 pc. Available WXS® coating only. List 4570 SPEEDFEEDP1034CARBIDE WXS SHANKREG0˚h6 WXS-CRE, Regular Length, High Feed, Corner Radius Milling Diameter Tolerance 2≤D≤5 +0 / -0.02mm 6≤D≤13 +0 / -0.03mm Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter No. of Number Flutes D R L Lc L1 d2 d 457002011 2 0.50 60 0.8 5.0 1.8 6 3 457003011 3 0.75 60 1.3 9.0 2.7 6 4 457004011 4 1.00 70 1.6 10.0 3.6 6 4 457005011 5 1.20 80 2.0 12.5 4.5 6 4 457006011 6 1.50 90 2.5 12.0 5.4 6 4 457007011 7 1.50 90 3.0 - - 6 4 457008011 8 2.00 100 3.5 16.0 7.2 8 4 457009011 9 2.00 100 4.0 - - 8 4 457010011 10 2.00 100 4.5 20.0 9.0 10 4 457011011 11 2.00 100 5.0 - - 10 4 457012011 12 3.00 110 5.0 24.0 11.0 12 4 457013011 13 3.00 110 6.0 - - 12 4 Packed: 1 pc. Available WXS® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie106541404340SteelsStainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4470 4570 good best 772 EXOCARB® WXS® WWW.OSGTOOL.COM
