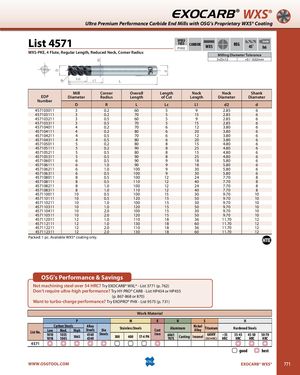

Общий каталог OSG 2018 - 2019 - страница 771

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4571 SPEEDFEEDP1032CARBIDE WXS SHANKREG45˚h6 WXS-PKE, 4 Flute, Regular Length, Reduced Neck, Corner Radius Milling Diameter Tolerance 3≤D≤12 +0 / -0.02mm Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter Number D R L Lc L1 d2 d 457103011 3 0.2 60 5 9 2.85 6 457103111 3 0.2 70 5 15 2.85 6 457103211 3 0.5 60 5 9 2.85 6 457103311 3 0.5 70 5 15 2.85 6 457104011 4 0.2 70 6 12 3.80 6 457104111 4 0.2 80 6 20 3.80 6 457104211 4 0.5 70 6 12 3.80 6 457104311 4 0.5 80 6 20 3.80 6 457105011 5 0.2 80 8 15 4.80 6 457105111 5 0.2 90 8 25 4.80 6 457105211 5 0.5 80 8 15 4.80 6 457105311 5 0.5 90 8 25 4.80 6 457106011 6 0.5 90 9 18 5.80 6 457106111 6 1.0 90 9 18 5.80 6 457106211 6 1.0 100 9 30 5.80 6 457106311 6 0.5 100 9 30 5.80 6 457108011 8 0.5 100 12 24 7.70 8 457108111 8 0.5 110 12 40 7.70 8 457108211 8 1.0 100 12 24 7.70 8 457108311 8 1.0 110 12 40 7.70 8 457110011 10 0.5 100 15 30 9.70 10 457110111 10 0.5 120 15 50 9.70 10 457110211 10 1.0 100 15 30 9.70 10 457110311 10 1.0 120 15 50 9.70 10 457110411 10 2.0 100 15 30 9.70 10 457110511 10 2.0 120 15 50 9.70 10 457112011 12 1.0 110 18 36 11.70 12 457112111 12 1.0 130 18 60 11.70 12 457112211 12 2.0 110 18 36 11.70 12 457112311 12 2.0 130 18 60 11.70 12 Packed: 1 pc. Available WXS® coating only. OSG's Performance & Savings Not machining steel over 54 HRC? Try EXOCARB® WXL® - List 3771 (p. 762) Don't require ultra-high performance? Try HY-PRO® CARB - List HP434 or HP435 (p. 867-868 or 870) Want to turbo-charge performance? Try EXOPRO® PHX - List 9575 (p. 731) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4571 good best WWW.OSGTOOL.COM EXOCARB® WXS® 771
