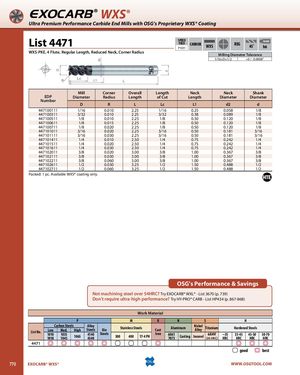

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4471 SPEEDFEEDP1031CARBIDE WXS SHANKREG45˚h6 WXS-PKE, 4 Flute, Regular Length, Reduced Neck, Corner Radius Milling Diameter Tolerance 1/16≤D≤1/2 +0 / -0.0008" Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter Number D R L Lc L1 d2 d 447100111 1/16 0.010 2.25 1/16 0.25 0.058 1/8 447100311 3/32 0.010 2.25 3/32 0.38 0.089 1/8 447100511 1/8 0.010 2.25 1/8 0.50 0.120 1/8 447100611 1/8 0.015 2.25 1/8 0.50 0.120 1/8 447100711 1/8 0.020 2.25 1/8 0.50 0.120 1/8 447101011 3/16 0.020 2.25 3/16 0.50 0.181 3/16 447101111 3/16 0.030 2.25 3/16 0.50 0.181 3/16 447101411 1/4 0.010 2.50 1/4 0.75 0.242 1/4 447101511 1/4 0.020 2.50 1/4 0.75 0.242 1/4 447101611 1/4 0.030 2.50 1/4 0.75 0.242 1/4 447102011 3/8 0.020 3.00 3/8 1.00 0.367 3/8 447102111 3/8 0.030 3.00 3/8 1.00 0.367 3/8 447102211 3/8 0.060 3.00 3/8 1.00 0.367 3/8 447102611 1/2 0.030 3.25 1/2 1.50 0.488 1/2 447102711 1/2 0.060 3.25 1/2 1.50 0.488 1/2 Packed: 1 pc. Available WXS® coating only. OSG's Performance & Savings Not machining steel over 54HRC? Try EXOCARB® WXL® - List 3670 (p. 739) Don't require ultra-high performance? Try HY-PRO® CARB - List HP434 (p. 867-868) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4471 good best 770 EXOCARB® WXS® WWW.OSGTOOL.COM
