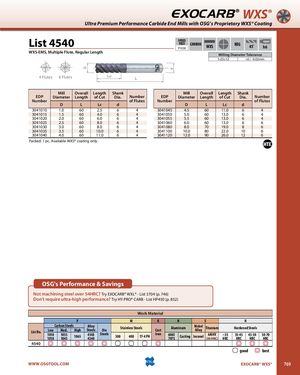

Общий каталог OSG 2018 - 2019 - страница 769

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4540 SPEEDFEEDP1030CARBIDE WXS SHANKREG45˚h6 WXS-EMS, Multiple Flute, Regular Length Milling Diameter Tolerance 1≤D≤12 +0 / -0.02mm 4 Flutes 6 Flutes Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Dia. Number EDP Diameter Length of Cut Dia. Number Number of Flutes Number of Flutes D L Lc d D L Lc d 3041010 1.0 60 2.5 6 4 3041045 4.5 60 11.0 6 4 3041015 1.5 60 4.0 6 4 3041050 5.0 60 13.0 6 4 3041020 2.0 60 6.0 6 4 3041055 5.5 60 13.0 6 4 3041025 2.5 60 8.0 6 4 3041060 6.0 60 13.0 6 6 3041030 3.0 60 8.0 6 4 3041080 8.0 70 19.0 8 6 3041035 3.5 60 10.0 6 4 3041100 10.0 80 22.0 10 6 3041040 4.0 60 11.0 6 4 3041120 12.0 90 26.0 12 6 Packed: 1 pc. Available WXS® coating only. OSG's Performance & Savings Not machining steel over 54HRC? Try EXOCARB® WXL® - List 3704 (p. 746) Don't require ultra-high performance? Try HY-PRO® CARB - List HP450 (p. 852) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie106541404340SteelsStainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4540 good best WWW.OSGTOOL.COM EXOCARB® WXS® 769
