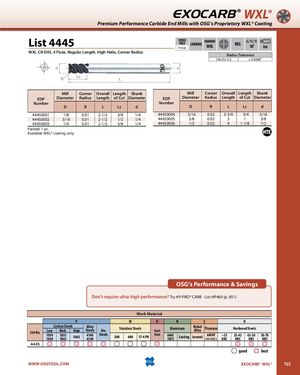

Общий каталог OSG 2018 - 2019 - страница 765

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 4445 SPEEDFEEDP1026CARBIDE WXL SHANKREG50˚h6 WXL-CR-EHS, 4 Flute, Regular Length, High Helix, Corner Radius Radius Tolerance 1/8≤D≤1/2 ± 0.0008" Mill Corner Overall Length Shank Mill Corner Overall Length Shank EDP Diameter Radius Length of Cut Diameter EDP Diameter Radius Length of Cut Diameter Number Number D R L Lc d D R L Lc d 44450001 1/8 0.01 2-1/2 3/8 1/4 44450004 5/16 0.02 2-3/4 3/4 5/16 44450002 3/16 0.01 2-1/2 1/2 1/4 44450005 3/8 0.02 3 1 3/8 44450003 1/4 0.01 2-1/2 5/8 1/4 44450006 1/2 0.02 4 1-1/8 1/2 Packed: 1 pc. Available WXL® coating only. OSG's Performance & Savings Don't require ultra-high performance? Try HY-PRO® CARB - List HP460 (p. 851) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4445 good best WWW.OSGTOOL.COM EXOCARB® WXL® 765
