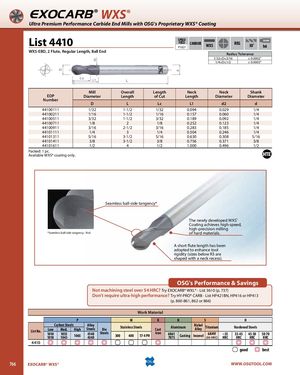

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4410 SPEEDFEEDP1027CARBIDE WXS SHANKREG30˚h6 WXS-EBD, 2 Flute, Regular Length, Ball End Radius Tolerance 1/32≤D≤3/16 ± 0.0002" 1/4≤D≤1/2 ± 0.0003" Mill Overall Length Neck Neck Shank EDP Diameter Length of Cut Length Diameter Diameter Number D L Lc L1 d2 d 44100111 1/32 1-1/2 1/32 0.094 0.029 1/4 44100211 1/16 1-1/2 1/16 0.157 0.060 1/4 44100511 3/32 1-1/2 3/32 0.189 0.092 1/4 44100711 1/8 2 1/8 0.252 0.123 1/4 44100911 3/16 2-1/2 3/16 0.283 0.185 1/4 44101111 1/4 3 1/4 0.504 0.246 1/4 44101311 5/16 3-1/2 5/16 0.630 0.308 5/16 44101411 3/8 3-1/2 3/8 0.756 0.371 3/8 44101611 1/2 4 1/2 1.000 0.496 1/2 Packed: 1 pc. Available WXS® coating only. Seamless ball-side tangency* The newly developed WXS® Coating achieves high-speed, high-precision milling *Seamless ball-side tangency : R≤6 of hard materials. A short flute length has been adopted to enhance tool rigidity (sizes below R3 are shaped with a neck recess). OSG's Performance & Savings Not machining steel over 54 HRC? Try EXOCARB® WXL® - List 3610 (p. 737) Don't require ultra-high performance? Try HY-PRO® CARB - List HP421BN, HP416 or HP413 (p. 860-861, 862 or 866) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4410 good best 766 EXOCARB® WXS® WWW.OSGTOOL.COM
