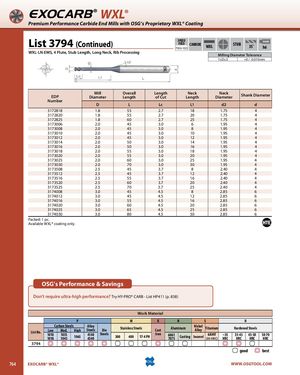

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3794 (Continued) SPEEDFEED CARBIDEP1024-1025WXL SHANKSTUB35˚h6 WXL-LN-EMS, 4 Flute, Stub Length, Long Neck, Rib Processing Milling Diameter Tolerance 1≤D≤3 +0 / -0.015mm EDP Mill OverallDiameterLengthLengthof Cut NeckLength NeckDiameterShank Diameter Number D L Lc L1 d2 d 3172818 1.8 55 2.7 18 1.75 4 3172820 1.8 55 2.7 20 1.75 4 3172825 1.8 60 2.7 25 1.75 4 3173006 2.0 45 3.0 6 1.95 4 3173008 2.0 45 3.0 8 1.95 4 3173010 2.0 45 3.0 10 1.95 4 3173012 2.0 45 3.0 12 1.95 4 3173014 2.0 50 3.0 14 1.95 4 3173016 2.0 50 3.0 16 1.95 4 3173018 2.0 55 3.0 18 1.95 4 3173020 2.0 55 3.0 20 1.95 4 3173025 2.0 60 3.0 25 1.95 4 3173030 2.0 70 3.0 30 1.95 4 3173508 2.5 45 3.7 8 2.40 4 3173512 2.5 45 3.7 12 2.40 4 3173516 2.5 55 3.7 16 2.40 4 3173520 2.5 60 3.7 20 2.40 4 3173525 2.5 70 3.7 25 2.40 4 3174008 3.0 45 4.5 8 2.85 6 3174012 3.0 45 4.5 12 2.85 6 3174016 3.0 55 4.5 16 2.85 6 3174020 3.0 60 4.5 20 2.85 6 3174025 3.0 65 4.5 25 2.85 6 3174030 3.0 80 4.5 30 2.85 6 Packed: 1 pc. Available WXL® coating only. OSG's Performance & Savings Don't require ultra-high performance? Try HY-PRO® CARB - List HP411 (p. 858) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3794 good best 764 EXOCARB® WXL® WWW.OSGTOOL.COM
