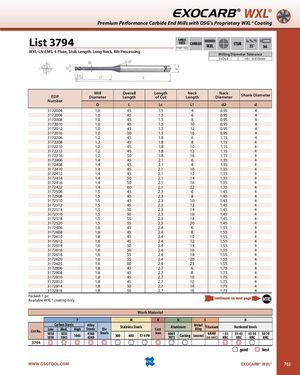

Общий каталог OSG 2018 - 2019 - страница 763

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3794 SPEEDFEED CARBIDEP1024-1025WXL SHANKSTUB35˚h6 WXL-LN-EMS, 4 Flute, Stub Length, Long Neck, Rib Processing Milling Diameter Tolerance 1≤D≤3 +0 / -0.015mm EDP Mill OverallDiameterLengthLengthof Cut NeckLength NeckDiameterShank Diameter Number D L Lc L1 d2 d 3172004 1.0 45 1.5 4 0.95 4 3172006 1.0 45 1.5 6 0.95 4 3172008 1.0 45 1.5 8 0.95 4 3172010 1.0 45 1.5 10 0.95 4 3172012 1.0 45 1.5 12 0.95 4 3172016 1.0 50 1.5 16 0.95 4 3172206 1.2 45 1.8 6 1.15 4 3172208 1.2 45 1.8 8 1.15 4 3172210 1.2 45 1.8 10 1.15 4 3172212 1.2 45 1.8 12 1.15 4 3172216 1.2 50 1.8 16 1.15 4 3172406 1.4 45 2.1 6 1.35 4 3172408 1.4 45 2.1 8 1.35 4 3172410 1.4 45 2.1 10 1.35 4 3172412 1.4 45 2.1 12 1.35 4 3172414 1.4 50 2.1 14 1.35 4 3172416 1.4 50 2.1 16 1.35 4 3172422 1.4 60 2.1 22 1.35 4 3172506 1.5 45 2.3 6 1.45 4 3172508 1.5 45 2.3 8 1.45 4 3172510 1.5 45 2.3 10 1.45 4 3172512 1.5 45 2.3 12 1.45 4 3172514 1.5 50 2.3 14 1.45 4 3172516 1.5 50 2.3 16 1.45 4 3172518 1.5 55 2.3 18 1.45 4 3172520 1.5 55 2.3 20 1.45 4 3172606 1.6 45 2.4 6 1.55 4 3172608 1.6 45 2.4 8 1.55 4 3172610 1.6 45 2.4 10 1.55 4 3172612 1.6 45 2.4 12 1.55 4 3172614 1.6 50 2.4 14 1.55 4 3172616 1.6 50 2.4 16 1.55 4 3172618 1.6 55 2.4 18 1.55 4 3172620 1.6 55 2.4 20 1.55 4 3172625 1.6 60 2.4 25 1.55 4 3172806 1.8 45 2.7 6 1.75 4 3172808 1.8 45 2.7 8 1.75 4 3172810 1.8 45 2.7 10 1.75 4 3172812 1.8 45 2.7 12 1.75 4 3172814 1.8 50 2.7 14 1.75 4 3172816 1.8 50 2.7 16 1.75 4 Packed: 1 pc. Available WXL® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3794 good best WWW.OSGTOOL.COM EXOCARB® WXL® 763
