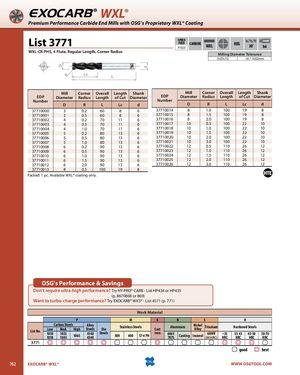

Общий каталог OSG 2018 - 2019 - страница 762

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3771 SPEEDFEEDP1023CARBIDE WXL SHANKREG30˚h6 WXL-CR-PHS, 4 Flute, Regular Length, Corner Radius Milling Diameter Tolerance 3≤D≤12 +0 / -0.02mm Mill Corner Overall Length ShankEDPDiameterRadiusLengthof CutDiameterNumberMillCorner Overall Length ShankEDPDiameterRadiusLengthof CutDiameterNumber D R L Lc d D R L Lc d 37710000 3 0.2 60 8 6 37710014 8 1.0 100 19 8 37710001 3 0.5 60 8 6 37710015 8 1.5 100 19 8 37710002 4 0.2 70 11 6 37710016 8 2.0 100 19 8 37710003 4 0.5 70 11 6 37710017 10 0.5 100 22 10 37710004 4 1.0 70 11 6 37710018 10 1.0 100 22 10 37710005 5 0.2 80 13 6 37710019 10 1.5 100 22 10 37710006 5 0.5 80 13 6 37710020 10 2.0 100 22 10 37710007 5 1.0 80 13 6 37710021 10 3.0 100 22 10 37710008 6 0.2 90 13 6 37710022 12 0.5 110 26 12 37710009 6 0.5 90 13 6 37710023 12 1.0 110 26 12 37710010 6 1.0 90 13 6 37710024 12 1.5 110 26 12 37710011 6 1.5 90 13 6 37710025 12 2.0 110 26 12 37710012 6 2.0 90 13 6 37710026 12 3.0 110 26 12 37710013 8 0.5 100 19 8 Packed: 1 pc. Available WXL® coating only. OSG's Performance & Savings Don't require ultra-high performance? Try HY-PRO® CARB - List HP434 or HP435 (p. 8670868 or 869) Want to turbo-charge performance? Try EXOCARB® WXS® - List 4571 (p. 771) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3771 good best 762 EXOCARB® WXL® WWW.OSGTOOL.COM
