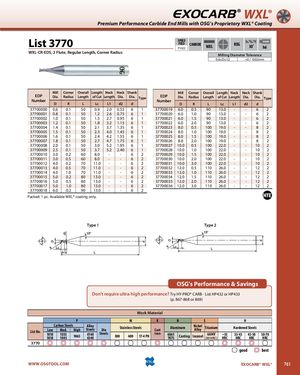

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3770 SPEEDFEEDP1022CARBIDEWXL SHANKREG30˚h6 WXL-CR-EDS, 2 Flute, Regular Length, Corner Radius Milling Diameter Tolerance 0.6≤D≤12 +0 / -0.02mm Mill Corner Overall Length Neck Neck Shank Mill Corner Overall Length Neck Neck Shank EDPNumber Dia. Radius Length of Cut Length Dia. Dia. Type EDPNumber Dia. Radius Length of Cut Length Dia. Dia. Type D R L Lc L1 d2 d D R L Lc L1 d2 d 37700000 0.6 0.1 50 0.9 2.0 0.55 6 1 37700019 6.0 0.5 90 13.0 - - 6 2 37700001 0.8 0.1 50 1.2 2.6 0.75 6 1 37700020 6.0 1.0 90 13.0 - - 6 2 37700002 1.0 0.1 50 1.5 2.7 0.95 6 1 37700021 6.0 1.5 90 13.0 - - 6 2 37700003 1.2 0.1 50 1.8 3.2 1.15 6 1 37700022 6.0 2.0 90 13.0 - - 6 2 37700004 1.4 0.1 50 2.1 3.7 1.35 6 1 37700023 8.0 0.5 100 19.0 - - 8 2 37700005 1.5 0.1 50 2.3 4.0 1.45 6 1 37700024 8.0 1.0 100 19.0 - - 8 2 37700006 1.6 0.1 50 2.4 4.2 1.55 6 1 37700025 8.0 1.5 100 19.0 - - 8 2 37700007 1.8 0.1 50 2.7 4.7 1.75 6 1 37700026 8.0 2.0 100 19.0 - - 8 2 37700008 2.0 0.1 50 3.0 5.2 1.95 6 1 37700027 10.0 0.5 100 22.0 - - 10 2 37700009 2.5 0.1 50 3.7 5.2 2.40 6 1 37700028 10.0 1.0 100 22.0 - - 10 2 37700010 3.0 0.2 60 8.0 - - 6 2 37700029 10.0 1.5 100 22.0 - - 10 2 37700011 3.0 0.5 60 8.0 - - 6 2 37700030 10.0 2.0 100 22.0 - - 10 2 37700012 4.0 0.2 70 11.0 - - 6 2 37700031 10.0 3.0 100 22.0 - - 10 2 37700013 4.0 0.5 70 11.0 - - 6 2 37700032 12.0 0.5 110 26.0 - - 12 2 37700014 4.0 1.0 70 11.0 - - 6 2 37700033 12.0 1.0 110 26.0 - - 12 2 37700015 5.0 0.2 80 13.0 - - 6 2 37700034 12.0 1.5 110 26.0 - - 12 2 37700016 5.0 0.5 80 13.0 - - 6 2 37700035 12.0 2.0 110 26.0 - - 12 2 37700017 5.0 1.0 80 13.0 - - 6 2 37700036 12.0 3.0 110 26.0 - - 12 2 37700018 6.0 0.2 90 13.0 - - 6 2 Packed: 1 pc. Available WXL® coating only. Type 1 Type 2 R R OSG's Performance & Savings Don't require ultra-high performance? Try HY-PRO® CARB - List HP432 or HP433 (p. 867-868 or 869) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3770 good best WWW.OSGTOOL.COM EXOCARB® WXL® 761
