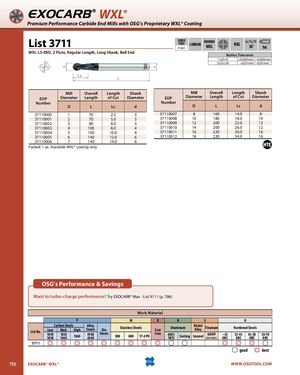

Общий каталог OSG 2018 - 2019 - страница 750

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3711 SPEEDFEEDP1001CARBIDE WXL SHANKREG30˚h6 WXL-LS-EBD, 2 Flute, Regular Length, Long Shank, Ball End Radius Tolerance 1≤D<4 +0.005mm / -0.005mm 5≤D≤18 +0.01mm / -0.01mm Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter EDP Diameter Length of Cut Diameter Number Number D L Lc d D L Lc d 37110000 1 70 2.5 3 37110007 8 160 14.0 8 37110001 2 70 5.0 3 37110008 10 180 18.0 10 37110002 3 80 8.0 3 37110009 12 200 22.0 12 37110003 4 100 8.0 4 37110010 14 200 26.0 12 37110004 5 100 10.0 4 37110011 16 220 30.0 16 37110005 6 140 12.0 6 37110012 18 220 34.0 16 37110006 7 140 14.0 6 Packed: 1 pc. Available WXL® coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOCARB® Max - List 9111 (p. 786) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3711 good best 750 EXOCARB® WXL® WWW.OSGTOOL.COM
