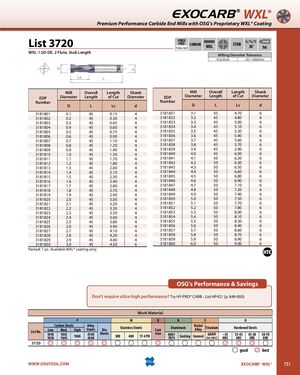

Общий каталог OSG 2018 - 2019 - страница 751

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3720 SPEEDFEED CARBIDEP1006-1007WXL SHANKSTUB30˚h6 WXL-1.5D-DE, 2 Flute, Stub Length Milling Diameter Tolerance 0.2≤D≤6 +0 / -0.02mm Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter EDP Diameter Length of Cut Diameter Number D L Lc d Number D L Lc d 3181801 0.1 45 0.15 4 3181831 3.1 45 4.70 6 3181802 0.2 45 0.30 4 3181832 3.2 45 4.80 6 3181803 0.3 45 0.45 4 3181833 3.3 45 5.00 6 3181804 0.4 45 0.60 4 3181834 3.4 45 5.10 6 3181805 0.5 45 0.75 4 3181835 3.5 45 5.30 6 3181806 0.6 45 0.90 4 3181836 3.6 45 5.40 6 3181807 0.7 45 1.10 4 3181837 3.7 45 5.60 6 3181808 0.8 45 1.20 4 3181838 3.8 45 5.70 6 3181809 0.9 45 1.40 4 3181839 3.9 45 5.90 6 3181810 1.0 45 1.50 4 3181840 4.0 45 6.00 6 3181811 1.1 45 1.70 4 3181841 4.1 50 6.20 6 3181812 1.2 45 1.80 4 3181842 4.2 50 6.30 6 3181813 1.3 45 2.00 4 3181843 4.3 50 6.50 6 3181814 1.4 45 2.10 4 3181844 4.4 50 6.60 6 3181815 1.5 45 2.30 4 3181845 4.5 50 6.80 6 3181816 1.6 45 2.40 4 3181846 4.6 50 6.90 6 3181817 1.7 45 2.60 4 3181847 4.7 50 7.10 6 3181818 1.8 45 2.70 4 3181848 4.8 50 7.20 6 3181819 1.9 45 2.90 4 3181849 4.9 50 7.40 6 3181820 2.0 45 3.00 4 3181850 5.0 50 7.50 6 3181821 2.1 45 3.20 4 3181851 5.1 50 7.70 6 3181822 2.2 45 3.30 4 3181852 5.2 50 7.80 6 3181823 2.3 45 3.50 4 3181853 5.3 50 8.00 6 3181824 2.4 45 3.60 4 3181854 5.4 50 8.10 6 3181825 2.5 45 3.80 4 3181855 5.5 50 8.30 6 3181826 2.6 45 3.90 4 3181856 5.6 50 8.40 6 3181827 2.7 45 4.10 4 3181857 5.7 50 8.60 6 3181828 2.8 45 4.20 4 3181858 5.8 50 8.70 6 3181829 2.9 45 4.40 4 3181859 5.9 50 8.90 6 3181830 3.0 45 4.50 6 3181860 6.0 50 9.00 6 Packed: 1 pc. Available WXL® coating only. OSG's Performance & Savings Don't require ultra-high performance? Try HY-PRO® CARB - List HP421 (p. 849-850) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3720 good best WWW.OSGTOOL.COM EXOCARB® WXL® 751
